Product Detailed Parameters
- Description：MOSFET N-CH 30V 12A 8ECH
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Bulk
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：30 V
- Current - Continuous Drain (Id) @ 25°C：12A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)：4V, 10V
- Rds On (Max) @ Id, Vgs：10mOhm @ 6A, 10V
- Vgs(th) (Max) @ Id：-
- Gate Charge (Qg) (Max) @ Vgs：31 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：1700 pF @ 10 V
- FET Feature：-
- Power Dissipation (Max)：1.6W (Ta)
- Operating Temperature：150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：8-ECH
- Package / Case：8-SMD, Flat Leads
Download product information
Overview

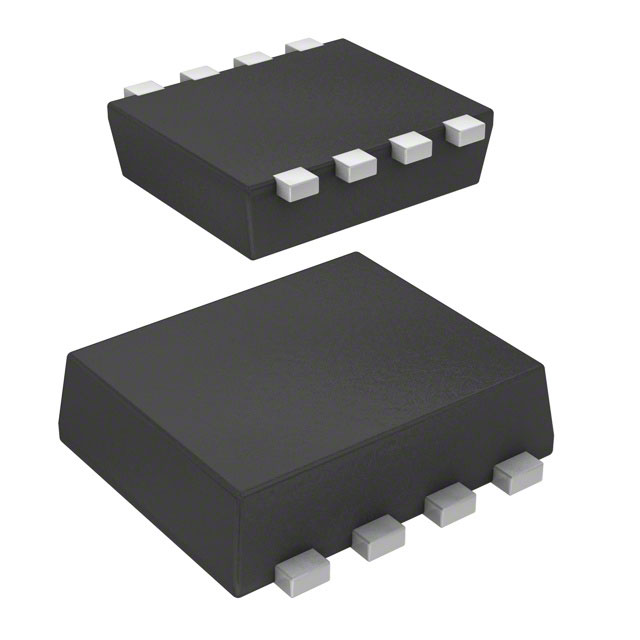

The ECH8410-TL-H is an N-channel silicon MOSFET from Onsemi, packaged in an 8-pin ECH configuration. It features a drain-source breakdown voltage of 30V and supports a continuous drain current of 12A. The device exhibits a low on-resistance of 10 mOhms, facilitating efficient power handling. Designed for compatibility with 4V drive logic, it integrates a protection diode within the structure. The component is supplied in reel packaging and complies with halogen-free standards.
Feature Summary
- Low on-resistance for efficient conduction
- Compatible with 4V drive logic levels
- Integrated protection diode structure
Applications
- Power management circuits requiring low voltage operation
- DC-DC converter topologies
- Load switching applications
Procurement Notes
Verify manufacturing status as sources indicate this product may be no longer manufactured or available through specific distributors like Rochester Electronics. Confirm package type and tape/reel specifications directly with authorized suppliers to ensure compatibility with existing assembly processes. Check for valid replacement part numbers if original supply is discontinued.
Selection Notes
Select this component for applications requiring a 30V N-channel MOSFET with high current capability of 12A. The low on-resistance makes it suitable for efficiency-critical designs. Ensure the driving circuit supports the specified 4V logic level. Verify that the 8-pin ECH package fits the board layout constraints and thermal requirements of the target system.
Part Context
This component belongs to Onsemi's single FET MOSFET category. It is designed for general-purpose switching applications where low voltage operation and high current density are required. The ECH package provides a compact form factor suitable for space-constrained electronic designs.
Replacement Considerations
Check for direct substitutes from Onsemi or other manufacturers with matching 30V, 12A, and 10 mOhms specifications. Verify pinout compatibility and package dimensions before substitution.
