Product Detailed Parameters

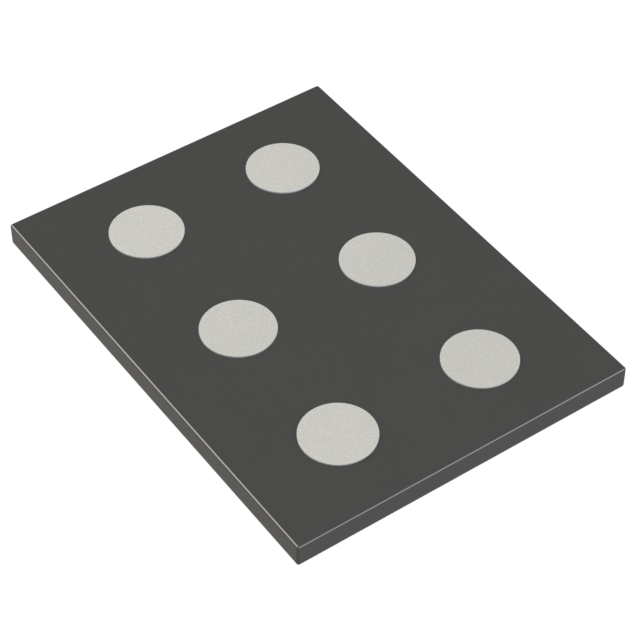

- Description：MOSFET 2N-CH 6WLCSP
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：MOSFET (Metal Oxide)
- Configuration：2 N-Channel (Dual) Common Drain
- FET Feature：-
- Drain to Source Voltage (Vdss)：-
- Current - Continuous Drain (Id) @ 25°C：-
- Rds On (Max) @ Id, Vgs：-
- Vgs(th) (Max) @ Id：1.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs：37nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：1.8W (Ta)
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：6-SMD, No Lead
- Supplier Device Package：6-WLCSP (2x1.49)
- Grade：-
- Qualification：-
Download product information
Overview
The EFC2J013NUZTDG is a dual N-channel power MOSFET manufactured by onsemi, designed for low-voltage applications. It features a 12V drain-source voltage rating and supports a continuous drain current of 17A. The device utilizes a Wafer Level Chip Scale Package (WLCSP) for compact surface-mount integration. Key electrical characteristics include a maximum gate-source voltage of ±12V and an operating temperature range from -55°C to +150°C junction temperature. This component is optimized for efficiency in portable electronics and battery protection circuits.
Feature Summary
- Dual N-channel configuration for space-efficient circuit design
- Wafer Level Chip Scale Package (WLCSP) for minimal footprint
- Optimized for low-voltage power switching applications
Applications
- Single-cell lithium-ion battery protection
- Portable electronic device power management
- Low-voltage DC-DC converter output stages
Procurement Notes
Verify the specific ordering suffix against official onsemi documentation to confirm package type and tape-and-reel specifications. Ensure compatibility with automated pick-and-place equipment due to the WLCSP form factor. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability status and lead times prior to procurement planning.
Selection Notes
Select this component when a dual N-channel MOSFET is required within a constrained PCB area. The 12V rating suits single-cell battery systems. Evaluate thermal performance based on the WLCSP package's limited heat dissipation capabilities compared to larger packages. Confirm that the 17A current rating meets the peak load requirements of the target application without exceeding junction temperature limits.
Part Context
This part belongs to onsemi's EFC series of low-voltage MOSFETs. The series focuses on high-density packaging solutions like WLCSP for consumer electronics. It complements other dual-channel devices in the portfolio offering similar voltage ratings but different current capacities or package styles.
Replacement Considerations
Check for direct pin-compatible alternatives within the same EFC series. Verify that substitute parts maintain identical WLCSP dimensions and electrical parameters. Consult onsemi's official substitution guides for validated replacements.
