Product Detailed Parameters
- Description：MOSFET 2N-CH 12V 20A 10WLCSP
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：MOSFET (Metal Oxide)
- Configuration：2 N-Channel (Dual) Common Drain
- FET Feature：Logic Level Gate, 2.5V Drive
- Drain to Source Voltage (Vdss)：12V
- Current - Continuous Drain (Id) @ 25°C：20A (Ta)
- Rds On (Max) @ Id, Vgs：2.85mOhm @ 5A, 4.5V
- Vgs(th) (Max) @ Id：1.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs：30nC @ 3.8V
- Input Capacitance (Ciss) (Max) @ Vds：-
- Power - Max：1.8W (Ta)
- Operating Temperature：150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：10-SMD, No Lead
- Supplier Device Package：10-WLCSP (1.84x1.96)
- Grade：-
- Qualification：-
Download product information
Overview

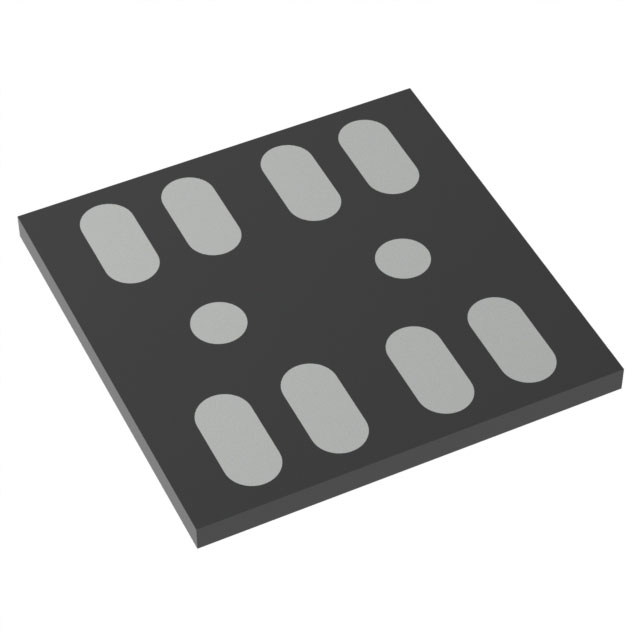

The EFC2K107NUZTCG is a dual N-channel Power MOSFET array manufactured by onsemi, housed in a compact 10-WLCSP package measuring 1.84x1.96 mm. It features a drain-source breakdown voltage of 12 V and supports a continuous drain current of 20 A. The device exhibits a low on-resistance of 2.85 mOhms and a gate charge of 30 nC, with a maximum operating temperature of +150°C and power dissipation of 1.8 W.
Feature Summary
- Dual N-channel configuration within a single compact footprint
- Low on-resistance for efficient power switching
- High thermal tolerance up to 150°C
Applications
- Single-cell lithium-ion battery charging switches
- Discharging switches for portable devices
- Power distribution in mobile electronics
Procurement Notes
Verify the specific suffix TC against official onsemi documentation to confirm tape and reel packaging specifications. Ensure the component meets RoHS compliance requirements for your assembly process. Cross-reference the 10-WLCSP package dimensions with your PCB layout constraints to guarantee mechanical fit. Confirm availability status as supply conditions may vary.
Selection Notes
Select this component when space-constrained designs require dual N-channel switching capabilities. The 12V rating suits single-cell battery systems. Evaluate the 2.85 mOhm resistance for efficiency needs. Consider the 10-WLCSP form factor for high-density layouts. Verify thermal management strategies given the 1.8 W dissipation limit in small packages.
Part Context
This part belongs to onsemi's portfolio of discrete semiconductors, specifically within the FET and MOSFET arrays category. It complements other low-voltage switching solutions designed for portable consumer electronics. The WLCSP technology enables miniaturization compared to traditional leaded packages, aligning with trends in compact mobile device design.
Replacement Considerations
Check for EFC2K112NUZTDG as a related dual N-channel variant, though it is marked as obsolete. Verify pin compatibility and electrical parameters before substitution. Consult onsemi for current active alternatives if this specific suffix is unavailable.
