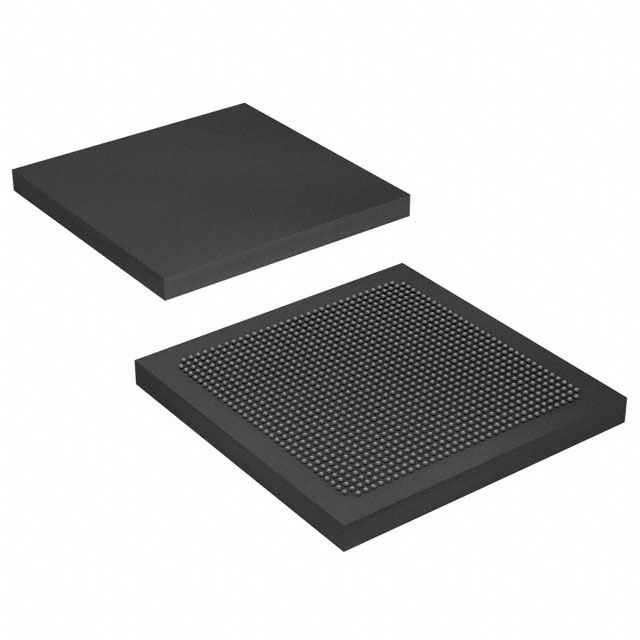

EP4SGX70HF35C4N

Field Programmable Gate Array Overview

The Altera EP4SGX70HF35C4N is a Field Programmable Gate Array belonging to the Stratix IV GX family. It features 72,600 Logic Elements and 29,040 Adaptive Logic Modules within 2,904 Logic Array Blocks. The device integrates 7.2 Mbit of embedded memory and supports up to 488 I/Os. It utilizes a 1152-pin FCBGA package with a 35x35 mm footprint. Operating at a core voltage of 0.87V to 0.93V, it supports data rates from 600 Mb/s to 8.5 Gb/s via its transceivers. The component is rated for commercial temperature ranges.

Field Programmable Gate Array Feature Summary

• Stratix IV GX architecture with 72,600 LEs and 7.2 Mbit embedded memory
• High-speed serial transceivers supporting data rates up to 8.5 Gb/s
• 1152-pin FineLine BGA package (FCBGA) suitable for high-density designs
• Integrated Clocking Resources including PLLs and DLLs for precise timing

Field Programmable Gate Array Applications

• Telecommunications infrastructure equipment
• Enterprise networking switches and routers
• Industrial automation control systems
• Medical imaging signal processing

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'C4N' against official Altera documentation to confirm pinout and electrical characteristics, as 'C4G' variants exist in public databases. Confirm RoHS compliance status and moisture sensitivity level (MSL 3) prior to assembly. Check for end-of-life notices or production change notifications that may affect long-term availability.

Field Programmable Gate Array Selection Notes

Select this model when requiring moderate logic density with high-speed serial connectivity capabilities. Ensure the design accommodates the 1152-pin BGA footprint and thermal requirements. Compare against the EP4SGX70HF35C4G if higher temperature ratings are needed, as the 'C' series typically denotes commercial temperature range.

Field Programmable Gate Array Part Context

This component is part of the Stratix IV GX family, designed for applications requiring significant bandwidth and low power consumption. It sits between smaller Stratix IV devices and larger models like the EP4SGX180, offering a balance of logic resources and transceiver count for mid-range high-performance applications.

Field Programmable Gate Array Replacement Considerations

Public sources list EP4SGX70HF35C4G as a variant within the same family. Verify if the 'N' suffix indicates a specific packaging or environmental certification difference before substituting.
