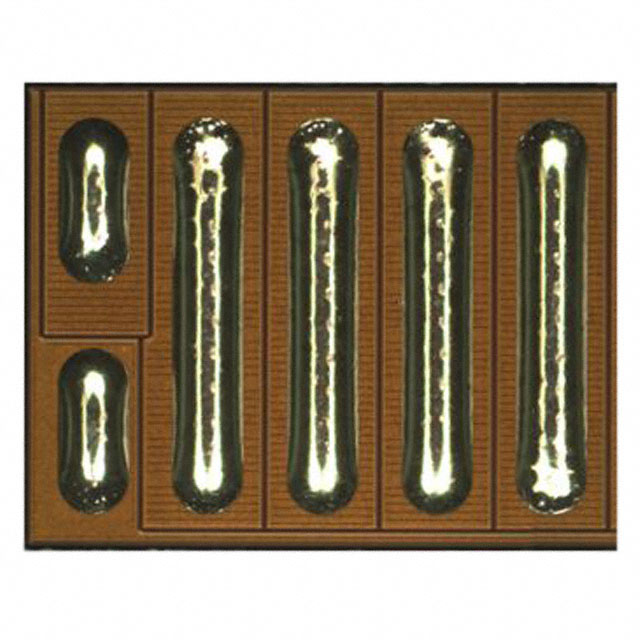

EPC2016

Description：GANFET N-CH 100V 11A DIE
Series：eGaN®
Mfr：EPC
Package：Tape & Reel (TR)

SKU:3e27a12d03dd Category: Single FETs, MOSFETs Brand: EPC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：GANFET N-CH 100V 11A DIE
Series：eGaN®
Mfr：EPC
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)：100 V
Current - Continuous Drain (Id) @ 25°C：11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：5V
Rds On (Max) @ Id, Vgs：16mOhm @ 11A, 5V
Vgs(th) (Max) @ Id：2.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs：5.2 nC @ 5 V
Vgs (Max)：+6V, -5V
Input Capacitance (Ciss) (Max) @ Vds：520 pF @ 50 V
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-40°C ~ 125°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：Die
Package / Case：Die

Download product information

EPC2016

Overview

The EPC2016 is an enhancement mode eGaN FET with a maximum device voltage of 100V. It is designed for high-efficiency power conversion applications, offering low on-resistance and fast switching capabilities. The component utilizes gallium nitride technology to achieve superior performance compared to traditional silicon MOSFETs in similar voltage ratings.

Feature Summary

Enhancement mode operation for direct logic control
Low thermal resistance for efficient heat dissipation
High switching speed capability

Applications

Pulsed laser diode drivers
Class E amplifiers
General ground-referenced switching applications

Procurement Notes

Verify the specific suffix (e.g., C) against the datasheet to ensure correct pinout and electrical characteristics. Confirm package type matches the target footprint. Check RoHS compliance status if required by project specifications.

Selection Notes

Select based on required voltage rating and current handling needs. Consider thermal management requirements given the power density. Ensure gate drive compatibility with the enhancement mode threshold voltages.

Part Context

EPC2016 is part of the eGaN family from Efficient Power Conversion. It serves as a core component in evaluation boards like EPC9010 and EPC9126, demonstrating its utility in half-bridge and single-switch configurations for various power electronics designs.
