EXC-24CB102U

Common Mode Chokes Overview

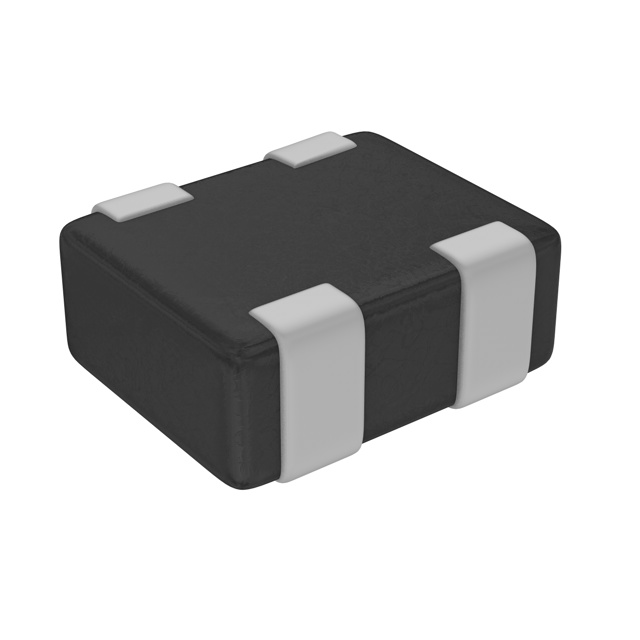

The EXC-24CB102U is a two-line common mode noise filter manufactured by Panasonic Industry. It features optimally magnetic-coupled ferrite beads designed for burst and radiation noise filtering in audio circuits. The component has an impedance of 1 kOhms at 100 MHz, a maximum DC current rating of 50 mA, and a maximum DC resistance of 1.5 Ohms.

Common Mode Chokes Feature Summary

• Optimally magnetic-coupled ferrite bead construction
• Designed for burst and radiation noise filtering
• Suitable for audio circuit applications

Common Mode Chokes Applications

• Audio circuit noise suppression
• Burst noise filtering
• Radiation noise filtering

Common Mode Chokes Procurement Notes

Verify the exact part number against official Panasonic documentation to ensure compatibility with specific design requirements. Confirm that the 50 mA current rating and 1.5 Ohm DC resistance meet the target circuit specifications. Check for any specific handling or mounting instructions provided in the manufacturer's datasheet before integration.

Common Mode Chokes Selection Notes

Select this component when designing audio circuits requiring effective suppression of both burst and radiation noise. Ensure the operating environment does not exceed the specified current limits. Consider the physical dimensions and mounting style if space constraints are a factor in the PCB layout design.

Common Mode Chokes Part Context

This component belongs to the EXC24CB series of common mode noise filters from Panasonic Industry. These filters are engineered to provide reliable electromagnetic interference reduction in sensitive electronic applications, particularly where audio signal integrity is critical.

Common Mode Chokes Replacement Considerations

Consult official Panasonic documentation for verified substitute part numbers within the same series or equivalent components from other manufacturers that match the electrical specifications.
