F1100PP03

Power Line Filter Modules Overview

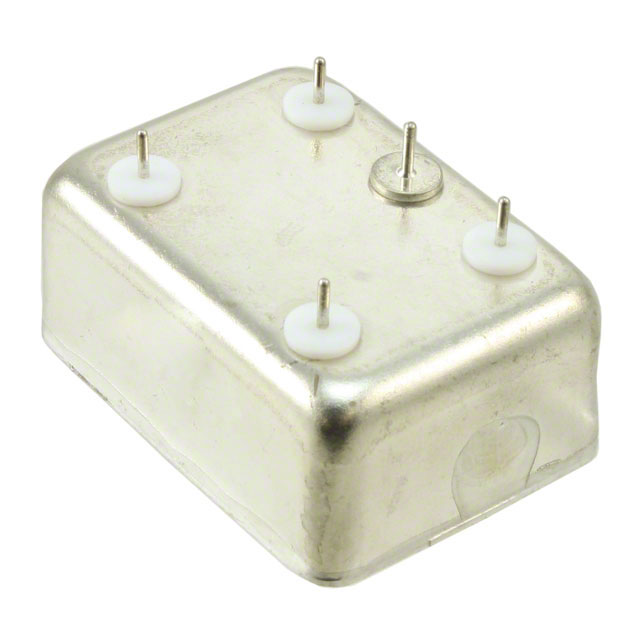

The Curtis Industries F1100PP03 is a single-phase EMC/EMI power line filter module designed for through-hole mounting. It operates at a rated voltage of 250VAC and handles a current of 3A at 50/60Hz frequencies. The unit utilizes PC pin termination for circuit board integration. This component functions as a single-stage filter to suppress radio frequency interference in AC power applications.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic compatibility filtering
• Through-hole PC pin termination style
• Designed for 50/60Hz AC power line applications

Power Line Filter Modules Applications

• AC power supply input stages
• Electronic equipment requiring EMI suppression
• Industrial control systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with Curtis Industries or authorized distributors before procurement. Confirm that the through-hole PC pin dimensions match the target PCB footprint. Ensure the operating environment remains within the specified voltage and current ratings to maintain filter efficacy and safety standards.

Power Line Filter Modules Selection Notes

Select this component when a single-stage, single-phase solution is required for low-current AC lines. Compare against the F1100BB03 if a lower current rating of 2.5A is sufficient for the application. Ensure the physical size constraints of the chassis accommodate the module's dimensions and that the PC pin spacing aligns with the available board layout.

Power Line Filter Modules Part Context

This part belongs to the Curtis F1100 series of RFI filters. These modules are engineered for general-purpose noise reduction in AC power inputs. The series offers various current ratings and termination styles to suit different enclosure and board design requirements.

Power Line Filter Modules Replacement Considerations

The F1100BB03 is a related model within the same series but is rated for 2.5A rather than 3A. Verify that the reduced current capacity meets the system requirements before substitution.
