F1250DD20

Power Line Filter Modules Overview

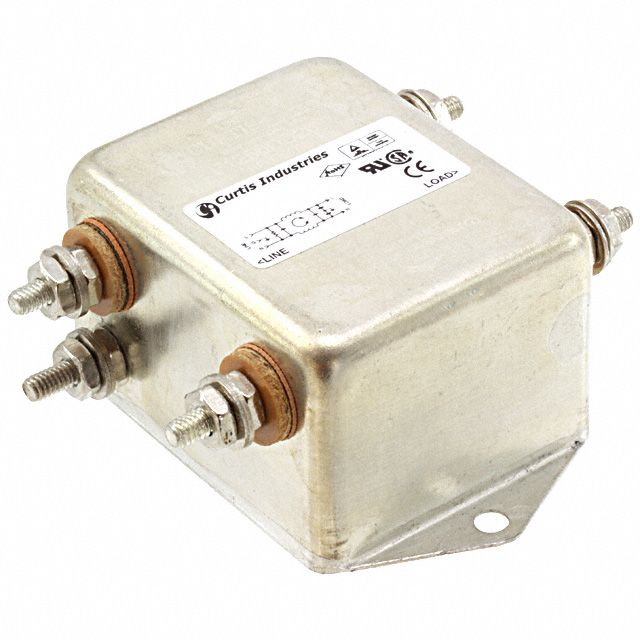

The Curtis Industries F1250DD20 is a single-phase EMC/EMI line filter module designed for power line protection. It features a 20 A current rating and operates at 250 VAC within 50/60 Hz systems. The unit utilizes a threaded post (8-32) connection interface and is constructed for chassis mounting applications.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for effective noise suppression
• Threaded post terminal configuration for secure mechanical attachment
• Chassis mount design for stable installation in equipment enclosures

Power Line Filter Modules Applications

• Industrial machinery power input stages
• Commercial equipment EMI mitigation
• Power supply line conditioning

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'DD20' against official Curtis Industries documentation to confirm the exact electrical characteristics and terminal style. Ensure compatibility with existing chassis mounting holes and thread specifications before integration into the final assembly design.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, 20 A rated filter is required for chassis-mounted installations. Confirm that the 8-32 threaded post interface matches the system's grounding or connection requirements. Validate voltage ratings against the specific application environment.

Power Line Filter Modules Part Context

This model belongs to the Curtis F1200/F1250 series of RFI filters. These modules are engineered for electromagnetic interference suppression in AC power lines. The series offers various current and voltage configurations tailored for different industrial and commercial power distribution needs.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalents. Cross-reference current ratings, voltage limits, and physical mounting dimensions to ensure functional interchangeability without modifying the host system structure.
