F4100R17N3P4B58BPSA1

Overview

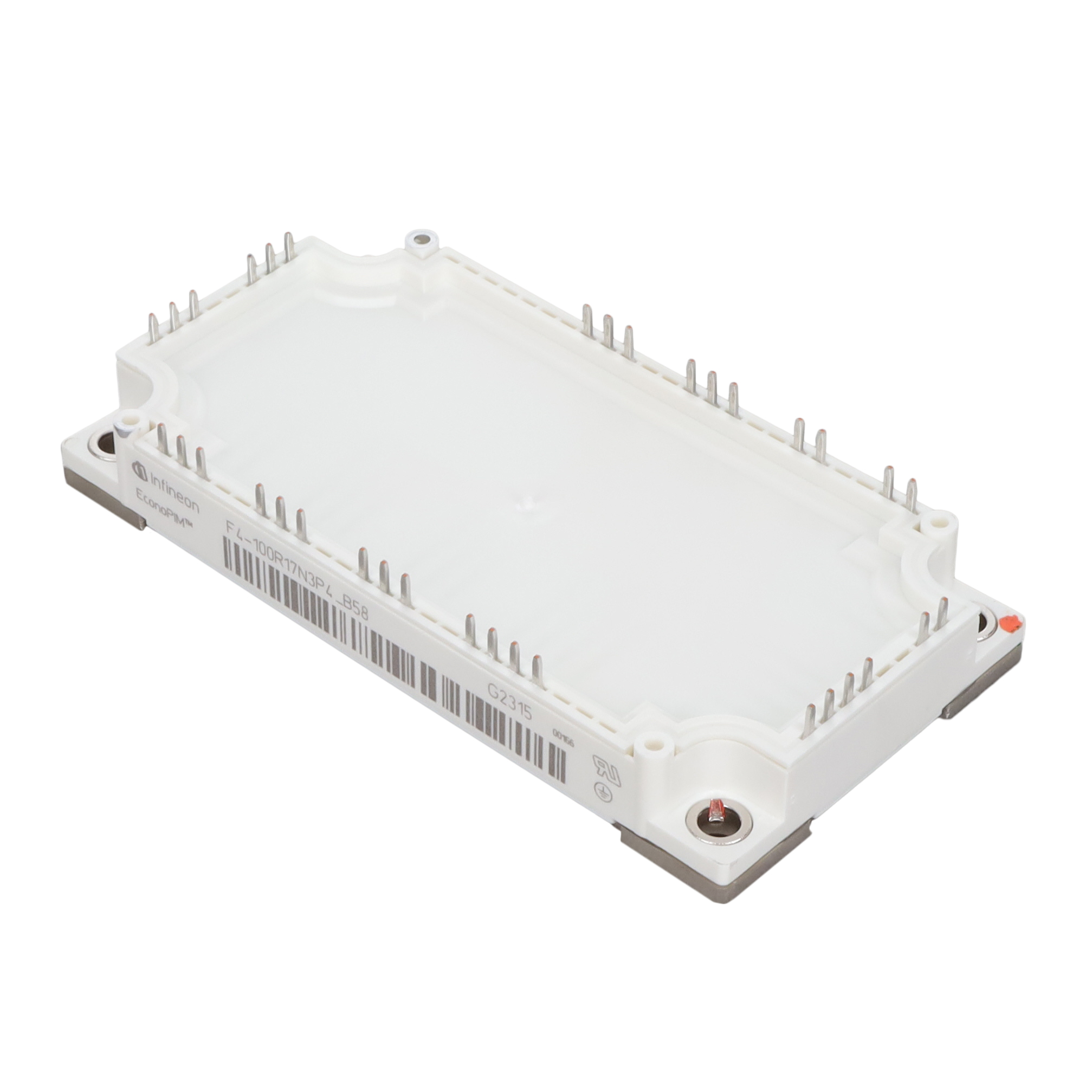

The F4100R17N3P4B58BPSA1 is an EconoPACK™3 IGBT module featuring Trench/Fieldstop IGBT4 technology and an emitter-controlled diode. It integrates a standard four-pack inverter configuration with an input rectifier diode and an NTC temperature sensor. The collector-emitter voltage (VCES) is rated at 1700 V, with a nominal continuous DC collector current (ICDC) of 100 A at TC = 95 °C and a repetitive peak current (ICRM) of 200 A. The maximum operating junction temperature (Tvj op) is 150 °C. Key electrical parameters include a typical VCE,sat of 1.90 V at IC = 100 A and Tvj = 25 °C, and a gate threshold voltage (VGEth) ranging from 5.35 V to 6.25 V.

Feature Summary

• Incorporates Trench IGBT 4 technology providing low saturation voltage and positive temperature coefficient for safe parallel operation.
• Includes an integrated NTC thermistor for precise thermal monitoring within the module.
• Features solder contact technology with an isolated copper base plate for effective heat dissipation.
• Validated for industrial applications according to IEC 60747, 60749, and 60068 standards.

Applications

• High-power converters
• Medium-voltage converters

Procurement Notes

Verify component authenticity by cross-referencing the Data Matrix barcode on the module label with Infineon's official traceability records. Ensure the ordering suffix matches the specific package variant required for your assembly process. Confirm that the supplier provides valid certificates of conformity and adherence to RoHS directives prior to finalizing any acquisition.

Selection Notes

Select this module for designs requiring robust short-circuit withstand capability and high thermal stability. The 1700 V rating suits medium-voltage AC drive and renewable energy systems. Evaluate the thermal resistance values against your heatsink design to ensure the junction temperature remains within the 150 °C operational limit under maximum load conditions.

Part Context

This component belongs to the Infineon EconoPACK™3 series, designed for compact power electronics. It utilizes silicon-based Trench Fieldstop technology to optimize switching losses and conduction characteristics. The module combines inverter legs with a dedicated rectifier stage, offering a complete solution for three-phase bridge configurations in industrial power conversion.

Replacement Considerations

Direct replacements must match the 1700 V / 100 A rating and EconoPACK™3 footprint. Verify pinout compatibility and thermal resistance specifications. Consult Infineon documentation for updated series members or alternative packages with similar electrical performance profiles.

FAQ

What is the maximum short-circuit current rating?

The module supports a short-circuit current (ISC) of 460 A for pulse durations up to 10 µs at a junction temperature of 150 °C.

Does the module include a built-in temperature sensor?

Yes, it features an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C for real-time thermal monitoring.

What is the isolation test voltage?

The module has an isolation test voltage (VISOL) of 3.4 kV RMS for 1 minute at 50 Hz between terminals and the heatsink.
