F4200R17N3E4B58BPSA1

Overview

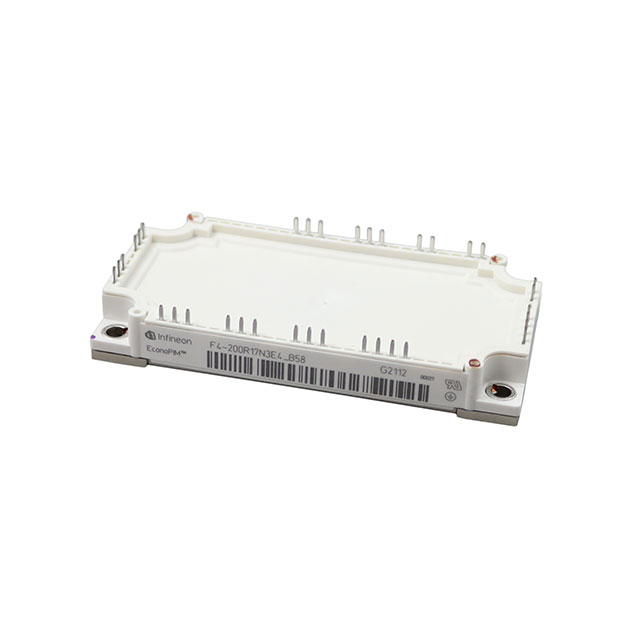

The F4200R17N3E4B58BPSA1 is a four-pack IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology and an emitter-controlled diode. It features a collector-emitter voltage (VCES) of 1700 V and a nominal continuous collector current (ICN) of 200 A at 25°C case temperature. The module includes an integrated NTC thermistor for thermal monitoring. Key electrical parameters include a typical VCEsat of 1.95 V at 25°C and 200 A, with a maximum operating junction temperature of 150°C. The package utilizes solder contact technology with an isolated copper base plate.

Feature Summary

• Integrates Trench/Fieldstop IGBT4 switches with emitter-controlled diodes for optimized switching performance.
• Includes an embedded NTC thermistor to enable precise real-time junction temperature monitoring.
• Features an isolated copper base plate with standard housing for reliable mechanical mounting.
• Designed with low stray inductance and positive temperature coefficient characteristics for safe parallel operation.

Applications

• High power converters
• Medium voltage converters

Procurement Notes

Verify the specific ordering suffix B58 against the official datasheet to confirm the exact terminal configuration and packaging details. Ensure that the procurement documentation references the correct revision history to avoid discrepancies in technical specifications. Cross-check insulation coordination requirements with the application environment standards.

Selection Notes

Select this component for applications requiring robust industrial-grade performance with high short-circuit withstand capability. Evaluate the thermal resistance values against the system's cooling strategy to ensure the junction temperature remains within the 150°C limit. Confirm that the gate drive circuitry supports the specified internal gate resistor and peak voltage ratings.

Part Context

This module belongs to the EconoPACK™3 series, designed for compact integration in modern power electronics. It represents Infineon's IGBT4 generation, balancing low conduction losses with fast switching speeds. The four-pack configuration allows for versatile bridge topologies in medium-power industrial drives and renewable energy systems.

Replacement Considerations

Direct substitutes within the same family include F4200R17N3E4BPSA1, which shares identical core electrical characteristics but may differ in minor packaging or marking details. Verify compatibility with existing PCB layouts and thermal interfaces before substitution.

FAQ

What is the maximum repetitive peak collector current?

The maximum repetitive peak collector current (ICRM) is 400 A for a pulse duration of 1 ms.

Is this module qualified for automotive applications?

No, the product is not qualified according to the AEC Q100 or AEC Q101 documents of the Automotive Electronics Council.

What is the rated resistance of the integrated NTC thermistor?

The rated resistance (R25) of the NTC thermistor is 5 kΩ at a temperature of 25°C.
