Product Detailed Parameters
- Description：IGBT MODULE 600V 29A 94W
- Series：EasyPIM™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2V @ 15V, 20A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：29 A
- Power - Max：94 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：1.1 nF @ 25 V
Download product information
Overview

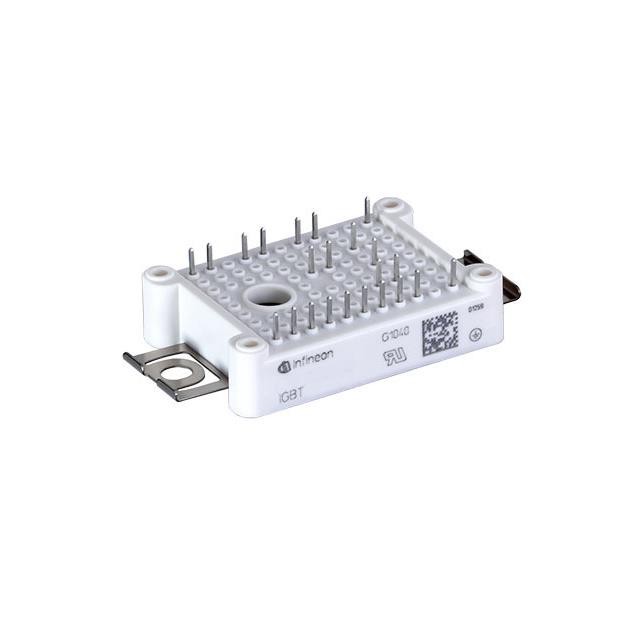

The FB20R06W1E3B11HOMA1 is a Power Integrated Module (PIM) from Infineon Technologies, utilizing Trench/Fieldstop IGBT3 technology. It features a 3-phase inverter configuration with a maximum collector-emitter voltage of 600 V and a continuous collector current of 29 A at 25°C. The module exhibits a typical collector-emitter saturation voltage of 1.55 V and a power dissipation rating of 94 W. Operating within a temperature range of -40°C to +150°C, it employs the EasyPIM™ 1B package for screw mounting.
Feature Summary
- Integrates three-phase inverter topology within a compact silicon module design
- Utilizes Trench/Fieldstop IGBT3 technology for optimized switching performance
- Incorporates EasyPIM™ 1B packaging for simplified mechanical integration
Applications
- Three-phase motor drive systems
- Industrial variable frequency drives
- Uninterruptible power supply inverters
Procurement Notes
Verify the specific ordering suffix B11HOMA1 against official Infineon documentation to confirm exact pinout and terminal configuration. Ensure compatibility with existing gate driver circuits regarding voltage thresholds. Confirm thermal interface material requirements for the EasyPIM 1B housing before assembly.
Selection Notes
Select this component for applications requiring a pre-configured three-phase inverter stage with moderate current ratings. The 600 V blocking capability suits standard industrial AC bus voltages. Evaluate thermal management solutions to maintain junction temperatures within the specified 150°C limit during peak load operations.
Part Context
This part belongs to the Infineon EasyPIM family, designed to reduce system complexity by integrating multiple power switches into a single unit. The FB20R06W1E3 series specifically targets cost-sensitive industrial applications where space constraints and assembly efficiency are critical factors for system designers.
Replacement Considerations
Direct substitutes include other Infineon EasyPIM modules with matching 600 V ratings and similar current capacities, such as the FB20R06W1E3 variant. Verify pin-to-pin compatibility and thermal resistance values when considering alternative manufacturers' PIM offerings.
