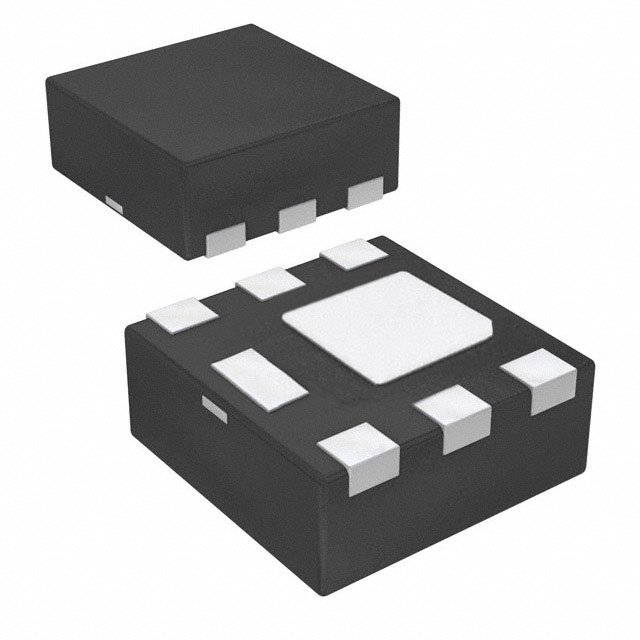

FDMA2002NZ_F130

FDMA2002NZ_F130 is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists onsemi. Its product description is MOSFET 2N-CH 30V 2.9A 6MICROFET. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for FDMA2002NZ_F130

• Description：MOSFET 2N-CH 30V 2.9A 6MICROFET
• Series：PowerTrench®
• Mfr：onsemi
• Package：Bulk
• Technology：MOSFET (Metal Oxide)
• Configuration：2 N-Channel (Dual)
• FET Feature：Logic Level Gate
• Drain to Source Voltage (Vdss)：30V
• Current - Continuous Drain (Id) @ 25°C：2.9A
• Rds On (Max) @ Id, Vgs：123mOhm @ 2.9A, 4.5V
• Vgs(th) (Max) @ Id：1.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs：3nC @ 4.5V
• Input Capacitance (Ciss) (Max) @ Vds：220pF @ 15V
• Power - Max：650mW
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：6-VDFN Exposed Pad
• Supplier Device Package：6-MicroFET (2x2)
• Grade：-
• Qualification：-
