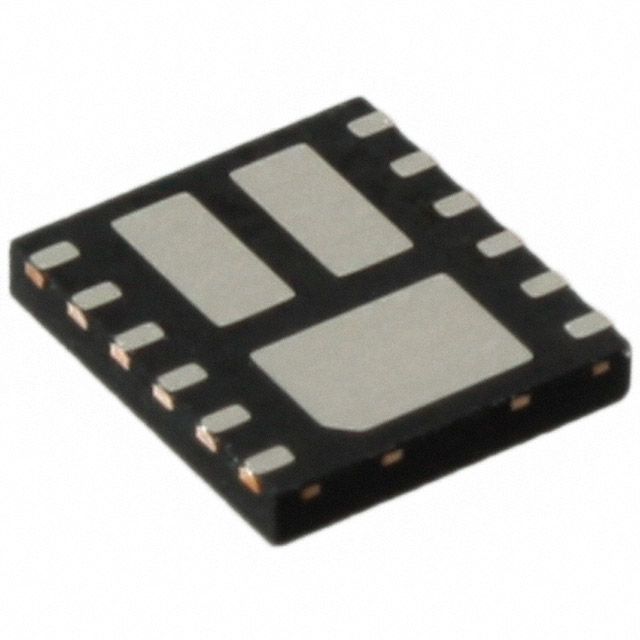

FDMQ8403

$3.37

Description：MOSFET 4N-CH 100V 3.1A 12MLP
Series：GreenBridge™ PowerTrench®

SKU:79bb24cbbd7a Category: FET, MOSFET Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FDMQ8403 is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists onsemi. Its product description is MOSFET 4N-CH 100V 3.1A 12MLP. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for FDMQ8403

Description：MOSFET 4N-CH 100V 3.1A 12MLP
Series：GreenBridge™ PowerTrench®
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：4 N-Channel (Full Bridge)
FET Feature：-
Drain to Source Voltage (Vdss)：100V
Current - Continuous Drain (Id) @ 25°C：3.1A
Rds On (Max) @ Id, Vgs：110mOhm @ 3A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：215pF @ 15V
Power - Max：1.9W
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：12-WDFN Exposed Pad
Supplier Device Package：12-MLP (5x4.5)
Grade：-
Qualification：-

FET, MOSFET Arrays datasheet and documents for FDMQ8403

FDMQ8403

FET, MOSFET Arrays Overview

The FDMQ8403 is a GreenBridge series high-efficiency bridge rectifier featuring an N-channel PowerTrench MOSFET. It integrates dual N-channel and dual P-channel transistors in a single package. The N-channel devices are rated for 100 V with a continuous current of 6 A and an on-resistance of 110 mΩ. The P-channel devices operate at -80 V, -6 A, with an on-resistance of 190 mΩ. This configuration enables synchronous rectification to minimize conduction losses.

FET, MOSFET Arrays Feature Summary

Integrates dual N-channel and dual P-channel MOSFETs for synchronous bridge rectification
Utilizes PowerTrench technology to achieve low on-resistance and high efficiency
Designed as a high-efficiency bridge rectifier solution

FET, MOSFET Arrays Applications

High-efficiency AC-DC power supplies
Synchronous rectification in isolated converter topologies
PoE-PD interface controllers

FET, MOSFET Arrays Part Context

The FDMQ8403 belongs to the GreenBridge series from onsemi (formerly Fairchild Semiconductor). It is part of a family including variants like FDMQ8203 and FDMQ8205A, designed to replace traditional diode bridges with active MOSFET-based solutions for improved performance.

FET, MOSFET Arrays Replacement Considerations

Compatible alternatives within the GreenBridge series include the FDMQ8203 and FDMQ8205A. Selection should verify voltage ratings and on-resistance requirements match the specific application design constraints.
