FDPC4044

FET, MOSFET Arrays Overview

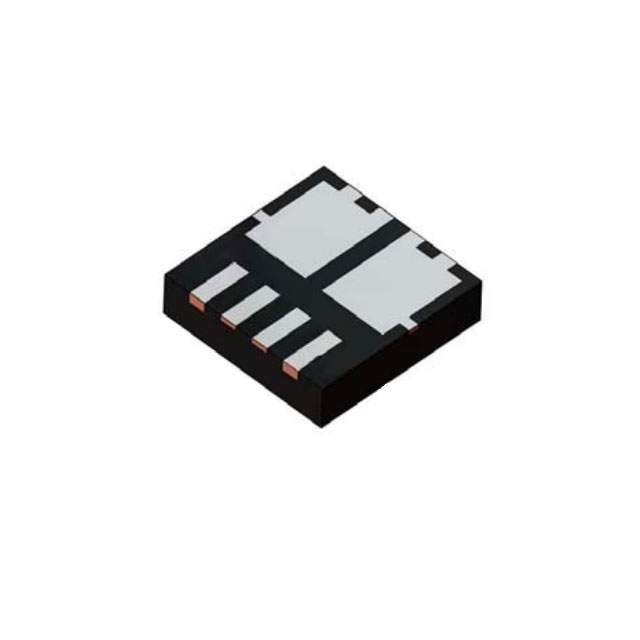

The FDPC4044 is a dual N-channel Power Trench MOSFET manufactured by onsemi. It utilizes the Power Clip package technology to achieve low thermal resistance and high current capability. The device features a 30V drain-source breakdown voltage and supports a continuous drain current of 45A. Key electrical parameters include a maximum on-resistance of 6.4 milliohms, a gate charge of 49 nanocoulombs, and symmetric rise and fall times of 10 nanoseconds. It operates within a temperature range of -55°C to +150°C with a power dissipation rating of 2.7 watts.

FET, MOSFET Arrays Feature Summary

• Dual N-channel configuration for efficient bridge or synchronous rectifier applications
• Power Clip package design providing enhanced thermal performance and low inductance
• Low on-resistance optimized for high-efficiency power switching

FET, MOSFET Arrays Applications

• DC-DC converter circuits
• Motor control systems
• Load switch implementations

FET, MOSFET Arrays Procurement Notes

Verify component authenticity through authorized distribution channels due to the presence of counterfeit risks in the semiconductor market. Confirm that the specific orderable part number matches the required suffixes for tape and reel or cut tape packaging formats. Ensure compliance with RoHS and REACH directives as specified in the manufacturer's documentation before integration into final assemblies.

FET, MOSFET Arrays Selection Notes

Select this component when a dual N-channel topology is required alongside high current handling capabilities. The 6.4 milliohm on-resistance makes it suitable for low-loss applications. Consider the Power Clip package for superior heat dissipation compared to standard surface-mount packages. Verify that the 30V voltage rating aligns with the system's operating conditions and transient requirements.

FET, MOSFET Arrays Part Context

The FDPC4044 belongs to the FD series of PowerTrench MOSFETs from onsemi. This series is characterized by advanced trench gate technology designed for high-speed switching and low conduction losses. The Power Clip variant specifically addresses thermal management challenges in compact designs. This product line serves the broader category of discrete power semiconductors used in industrial and consumer electronics.

FET, MOSFET Arrays Replacement Considerations

Consult official replacement guides for equivalent dual N-channel MOSFETs with similar voltage and current ratings. Verify pin compatibility and thermal characteristics when substituting components. Check for updated part numbers resulting from manufacturer naming conventions.
