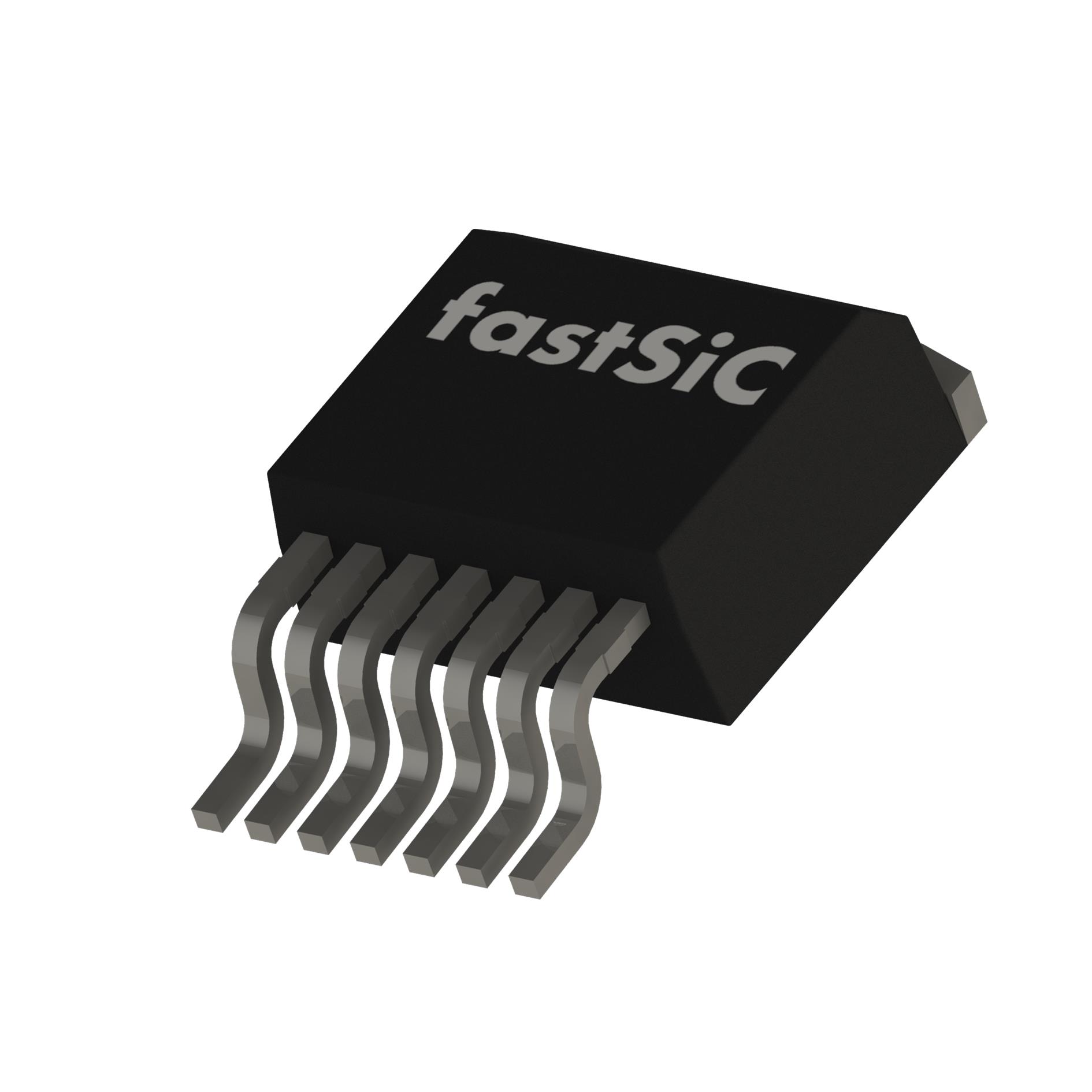

FF06030J-7

Single FETs, MOSFETs Overview

The FF06030J-7 is a Silicon Carbide (SiC) MOSFET from the Falcon Series by fastSiC, designed for high-efficiency power conversion. It features a 650V drain-source voltage and a maximum on-state resistance of 45mΩ at 18V gate drive. The device supports a continuous drain current of up to 62A at 25°C case temperature and handles pulse currents of 183A. With a total gate charge of 125nC and an avalanche energy rating of 1100mJ, it enables high-frequency operation and robust performance in demanding thermal environments ranging from -55°C to 175°C.

Single FETs, MOSFETs Feature Summary

• Clean Kelvin-source switching pin-out for optimized gate drive compatibility
• High avalanche endurance capability for reliable operation under stress
• Optimized on-resistance combined with rapid switching behavior
• Halogen-free and RoHS compliant construction

Single FETs, MOSFETs Applications

• Switching mode power supplies
• Power factor correction and DC/DC converters
• Electric vehicle charging stations
• Uninterruptible power systems
• Renewable energy inverters and motor drivers

Single FETs, MOSFETs Procurement Notes

Verify the specific datasheet revision against the manufacturer's official documentation before finalizing designs. Confirm that the TO-263-7L package dimensions align with the target PCB footprint. Ensure thermal management solutions account for the junction-to-case thermal impedance characteristics provided in the electrical specifications.

Single FETs, MOSFETs Selection Notes

Select this component when system requirements demand low conduction losses alongside high switching frequencies. The 650V rating suits medium-voltage applications, while the Kelvin source pin simplifies driver layout. Evaluate the thermal derating curves to ensure continuous current ratings remain within safe operating limits under expected ambient conditions.

Single FETs, MOSFETs Part Context

This part belongs to the Falcon Series of SiC MOSFETs manufactured by fastSiC Semiconductor Inc. The series focuses on high-power density applications requiring superior thermal stability and efficiency compared to traditional silicon devices. The FF06030 variant specifically targets the 650V market segment with optimized RDS(on).

Single FETs, MOSFETs Replacement Considerations

Consult the manufacturer directly for comparable products or direct substitutes. Verify pinout compatibility and thermal parameters if replacing existing silicon-based MOSFETs in established designs.
