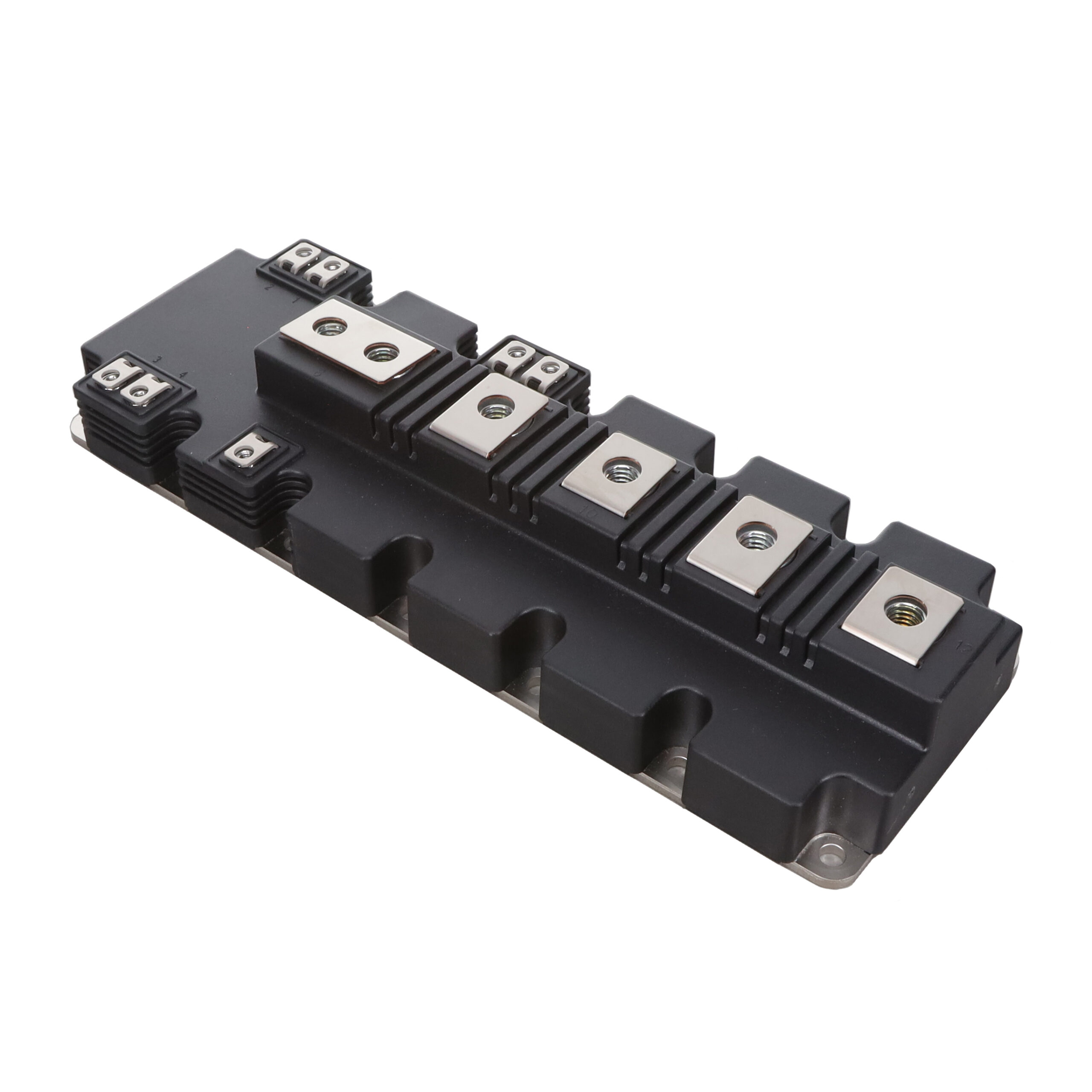

FF1000R17IE4DB2BOSA1

$577.22

Description：IGBT MODULE 1700V 6250W
Series：PrimePACK™3

SKU:676159f98e7c Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1700V 6250W
Series：PrimePACK™3
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：2 Independent
Vce(on) (Max) @ Vge, Ic：2.45V @ 15V, 1000A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1700 V
Current - Collector (Ic) (Max)：-
Power - Max：6250 W
Current - Collector Cutoff (Max)：5 mA
Input Capacitance (Cies) @ Vce：81 nF @ 25 V

Download product information

FF1000R17IE4DB2BOSA1

Overview

The FF1000R17IE4D_B2 is a half-bridge IGBT module from Infineon's TRENCHSTOP™ PrimePACK™3 series. It features a 1700 V collector-emitter voltage (VCES) and a continuous DC collector current of 1000 A at TC=100°C, with a peak repetitive current of 2000 A. The typical collector-emitter saturation voltage (VCEsat) is 2.00 V at Tvj=25°C. Total power dissipation reaches 6.25 kW. The integrated freewheeling diode has a forward voltage of 1.70 V at 25°C. Thermal resistance from junction to case is 24.0 K/kW for the IGBT and 35.0 K/kW for the diode. The module includes an NTC thermistor rated at 5.00 kΩ at 25°C.

Feature Summary

Extended operation temperature range up to 150°C
High DC stability and high current density
Low switching losses with low VCEsat
Enlarged diode optimized for regenerative operation

Applications

3-Level Applications
Auxiliary Inverters
High Power Converters
Motor Drives
Traction Drives
Wind Turbines

Procurement Notes

Verify the exact ordering suffix against official documentation, as variations may exist. Confirm RoHS compliance status through the manufacturer's latest release notes or specific product data sheets. Ensure that the component matches the required electrical ratings and mechanical dimensions for your specific application design before finalizing procurement.

Selection Notes

Select this module for applications requiring high power density and robust thermal cycling capability. Consider the 1700 V rating for medium-voltage industrial systems. Evaluate the switching loss characteristics against your system frequency requirements. Ensure adequate heatsinking to maintain junction temperatures within the specified operational limits during high-current operation.

Part Context

This component belongs to Infineon's TRENCHSTOP IGBT4 technology family, utilizing the PrimePACK™3 packaging format. It is designed for high-power industrial applications where reliability and efficiency are critical. The module integrates both IGBT and diode chips on a copper base plate, providing a compact solution for inverter bridges.
