FF300R08W2P2B11ABOMA1

Overview

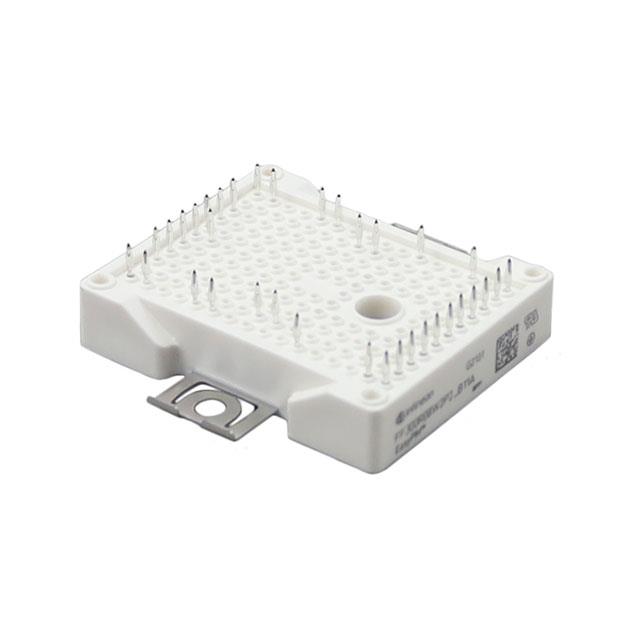

The FF300R08W2P2B11ABOMA1 is an IGBT power module utilizing the EDT2 generation, housed in an EasyPACK™ 2B package. It features a 750 V collector-emitter voltage (VCES) and a nominal implemented current of 300 A. The typical saturation voltage (VCE,sat) is 1.18 V at 200 A and 25°C. Maximum gate-emitter voltage is ±20 V. The module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C. Operating junction temperature ranges from -40°C to 150°C. Insulation isolation test voltage is 4.2 kV DC for 1 second.

Feature Summary

• EDT2 IGBT technology optimized for low switching losses and high short-circuit ruggedness
• Integrated NTC temperature sensor for thermal monitoring
• PressFIT contact technology for signal terminals to eliminate selective soldering
• High creepage and clearance distances ensuring robust insulation

Applications

• Main inverters for hybrid electric vehicles (HEVs)
• Main inverters for battery electric vehicles (BEVs)
• Automotive motor drives

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm exact configuration details. Ensure that the procurement channel provides traceability to the manufacturer's original production records. Cross-reference the material number on the module label with the datasheet specifications to validate authenticity before integration into automotive systems.

Selection Notes

Select this component for applications requiring a 750 V blocking capability and high current density within a compact form factor. The module is specifically designed for switching frequencies around 10 kHz. Consider the thermal resistance values when designing the heatsink interface. Verify that the PCB hole pattern matches the specified PressFIT pin grid dimensions for proper mechanical mounting.

Part Context

This module belongs to the EasyPACK™ 2B family, which is validated according to the AQG 324 automotive standard. The EDT2 chipset represents a benchmark in current density and efficiency for automotive traction inverters. The package design integrates isolation and high power cycling capability to withstand harsh environmental conditions typical in vehicle powertrains.

Replacement Considerations

Consult official Infineon cross-reference guides for direct replacements. Verify compatibility of thermal resistance and pinout configurations if substituting with other EasyPACK™ variants. Ensure any alternative maintains the required 750 V rating and automotive qualification standards.
