Product Detailed Parameters
- Description：IGBT MOD 1200V 440A 1450W
- Series：C
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Half Bridge
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 300A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：440 A
- Power - Max：1450 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：21 nF @ 25 V
Download product information
Overview

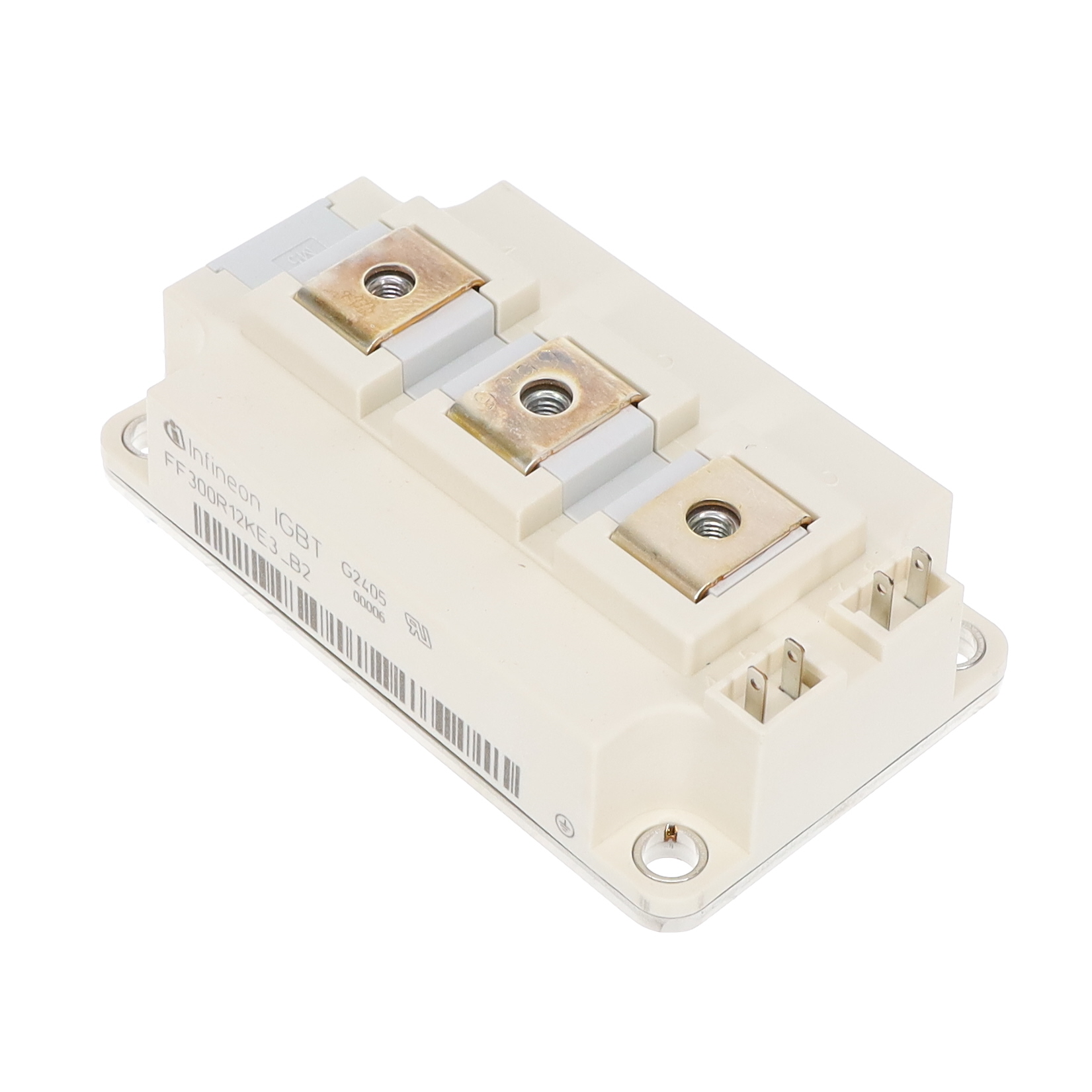

The FF300R12KE3B2HOSA1 is a 62mm C-series IGBT module featuring Trench/Fieldstop IGBT3 technology and an Emitter Controlled High Efficiency Diode. It has a collector-emitter voltage of 1200 V, a continuous DC collector current of 300 A at 80°C case temperature, and a repetitive peak collector current of 600 A. The typical collector-emitter saturation voltage is 2.00 V at 300 A and 25°C junction temperature. Total power dissipation is rated at 1450 W. The module operates within a junction temperature range of -40°C to 125°C.
Feature Summary
- Integrates Trench/Fieldstop IGBT3 technology with an Emitter Controlled High Efficiency Diode for optimized switching performance.
- Designed in a robust 62mm C-series housing suitable for high-power industrial applications.
- Features low thermal resistance values to facilitate efficient heat transfer from the junction to the heatsink.
Applications
- Industrial Inverters
- Uninterruptible Power Supplies (UPS)
- Induction Heating Systems
Procurement Notes
Verify the specific ordering suffix B2 against official Infineon documentation to confirm exact configuration details. Ensure compatibility with standard M6 mounting screws and verify torque specifications during installation. Cross-reference datasheet revision 3.2 for accurate electrical parameters before finalizing procurement orders.
Selection Notes
Select this module for applications requiring 1200 V blocking capability and up to 300 A continuous current. Consider the 62mm package dimensions and screw-mounting requirements for mechanical integration. Evaluate thermal management needs based on the specified junction-to-case thermal resistance values under expected operating conditions.
Part Context
This component belongs to the Infineon 62mm C-series module family, utilizing IGBT3 technology. It is part of the broader IGBT modules category designed for high-efficiency power conversion. The series includes various voltage and current ratings tailored for industrial drive and power supply applications.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official Infineon replacement guides or application notes for compatible alternatives if direct substitution is required.
