Product Detailed Parameters
- Description：IGBT MOD 1200V 370A 1950W
- Series：C
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：2 Independent
- Vce(on) (Max) @ Vge, Ic：3.75V @ 15V, 300A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：370 A
- Power - Max：1950 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：20 nF @ 25 V
Download product information
Overview

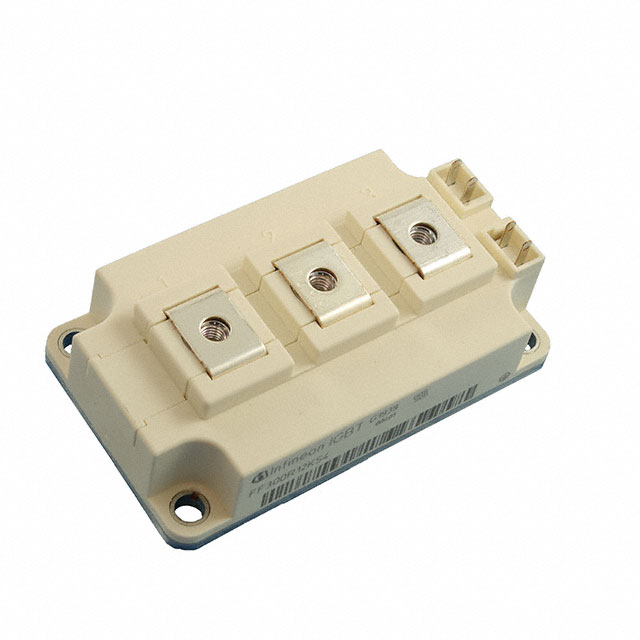

The FF300R12KS4HOSA1 is a dual IGBT module from Infineon's IGBT2 Fast series, designed for high-frequency switching applications. It features a half-bridge topology with a collector-emitter voltage (VCES) of 1200 V and a continuous DC collector current (IC) of 370 A at TC=25°C. The module utilizes TRENCHSTOP technology to achieve low switching losses. Key electrical parameters include a typical collector-emitter saturation voltage (VCEsat) of 3.2 V at 25°C and a gate charge (QG) of 3.2 µC. Total power dissipation reaches 1950 W at TC=25°C. The unit weighs 340 g and operates within a junction temperature range of -40°C to 125°C.
Feature Summary
- Utilizes fast IGBT2 technology for optimized high-frequency switching performance
- Features TRENCHSTOP structure combining MOSFET drive with bipolar transistor conduction
- Designed for robust operation with short-circuit capability up to 2000 A
Applications
- Industrial motor drives and inverters
- Uninterruptible Power Supplies (UPS)
- Welding machines and induction heating systems
Procurement Notes
Verify the specific ordering suffix HOSA1 against official Infineon documentation to confirm exact manufacturing lot or packaging variations. Ensure compatibility with standard AG-62MM-1 mounting hardware. Confirm RoHS compliance status through the latest datasheet revision before finalizing procurement specifications.
Selection Notes
Select this module for applications requiring high current density and fast switching speeds within a 1200 V rating. Consider the thermal resistance values when designing heatsink solutions. Evaluate gate resistor requirements to manage switching losses and voltage overshoot effectively during hard-switching operations.
Part Context
This component belongs to the Infineon IGBT2 Fast series, specifically the 62mm C-series modules. These modules are engineered for industrial power electronics where efficiency and switching speed are critical. The part number indicates a specific configuration within the broader family of 1200 V silicon IGBT modules.
Replacement Considerations
Direct replacements must match the 62 mm package footprint and pinout. Verify that substitute parts offer comparable VCES, IC ratings, and thermal characteristics. Cross-reference with other Infineon IGBT2 series variants if available.
