FF450R12ME4EB11BPSA1

Overview

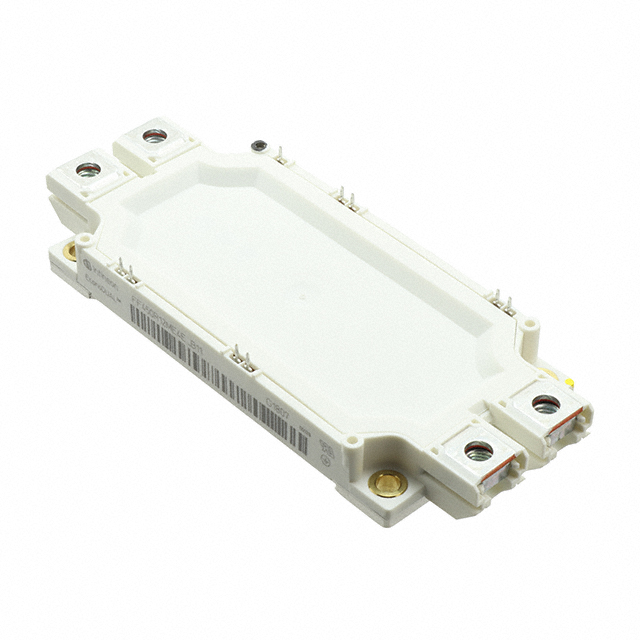

The FF450R12ME4EB11BPSA1 is a dual IGBT module from Infineon's Trenchstop IGBT4 - E4 series, housed in an EconoDUAL™ 3 package. It features a 1200 V collector-emitter voltage rating and a nominal continuous collector current of 450 A at Tc=80°C. The typical saturated collector-emitter voltage is 1.75 V at 25°C junction temperature, with a maximum power dissipation of 2.25 kW. The device supports screw mounting and operates within a junction temperature range of -40°C to +150°C.

Feature Summary

• Integrates Trenchstop IGBT4 technology for optimized switching performance and low conduction losses.
• Utilizes the compact EconoDUAL™ 3 package design for efficient thermal management and reliable assembly.
• Features solder pins compatible with standard industrial manufacturing processes.

Applications

• Motor control and drive systems
• Industrial power conversion applications
• Medium-power inverter circuits

Procurement Notes

Verify the specific suffix EB11BPSA1 against official Infineon documentation to confirm exact pinout and internal configuration details. Ensure that the selected gate driver and cooling solution are compatible with the EconoDUAL™ 3 form factor and the module's thermal resistance specifications. Confirm RoHS compliance status through the manufacturer's latest release notes before finalizing procurement orders.

Selection Notes

Select this component for applications requiring high current density and robust switching capabilities in the 1200V class. Consider the 675A peak current capability when designing protection circuits. Evaluate the thermal interface requirements based on the 0.066 K/W junction-to-case thermal resistance to ensure stable operation under continuous load conditions without exceeding the maximum junction temperature limit.

Part Context

This module belongs to the Infineon Trenchstop IGBT4 family, which combines MOSFET gate control with bipolar transistor conductivity modulation. The EconoDUAL™ 3 series is designed for high-power industrial applications, offering a standardized footprint that facilitates easy integration into existing converter designs while providing improved thermal performance compared to previous generations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative modules by matching voltage ratings, current capabilities, and package dimensions such as the 152 mm x 62 mm footprint.
