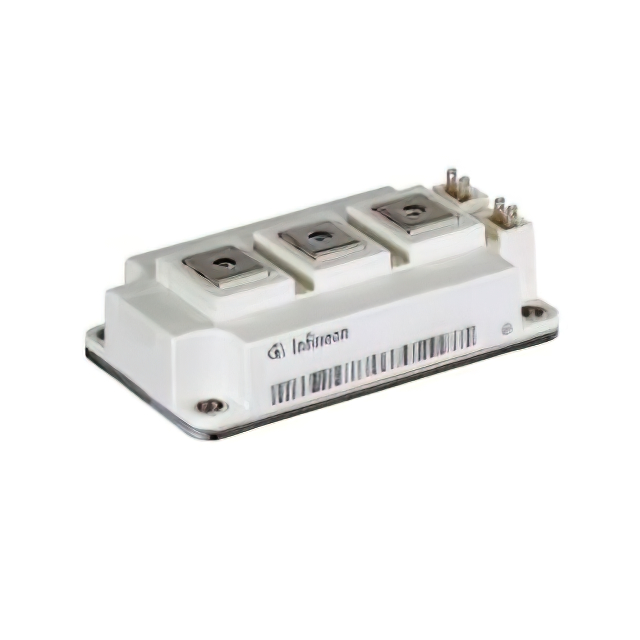

FF5MR20KM1HPHPSA1

$291.96

Description：MEDIUM POWER 62MM
Series：-

SKU:44587b058005 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MEDIUM POWER 62MM
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：-
Configuration：-
Vce(on) (Max) @ Vge, Ic：-
Input：-
NTC Thermistor：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：-
Current - Collector (Ic) (Max)：-
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

FF5MR20KM1HPHPSA1

Overview

The FF5MR20KM1HPHPSA1 is a half-bridge MOSFET module from Infineon's 62 mm C-Series, utilizing CoolSiC Trench technology. It features a drain-source voltage (VDSS) of 2000 V and a nominal current (IDN) of 200 A with a repetitive peak rating of 400 A. The on-state resistance (RDS(on)) ranges from 5.2 mΩ to 15.5 mΩ depending on temperature. Key electrical parameters include a total gate charge of 0.78 µC and an internal gate resistor of 1.8 Ω. Thermal performance includes a junction-to-heatsink resistance of 0.218 K/W. The module incorporates pre-applied thermal interface material and provides 4 kV AC insulation.
