FF600R07ME4B11BPSA1

Overview

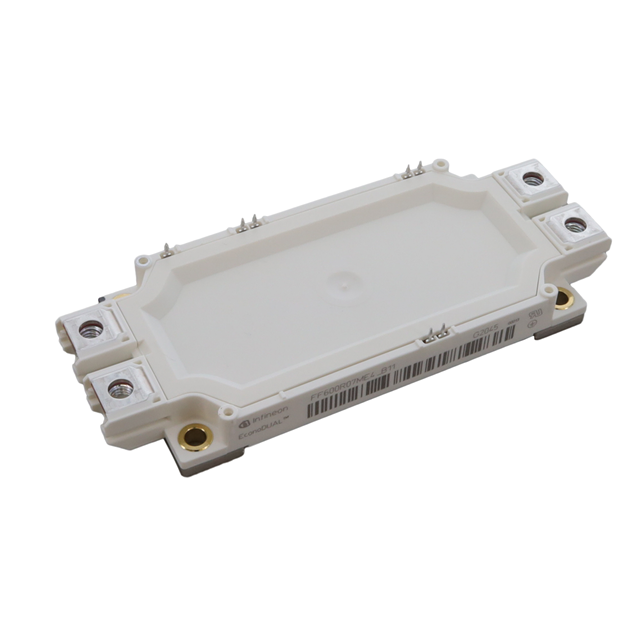

The FF600R07ME4B11BPSA1 is a dual IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 technology and an emitter-controlled diode. It features PressFIT contact technology and an integrated NTC temperature sensor within the EconoDUAL™3 housing. The module supports a collector-emitter voltage (VCES) of 650 V and a continuous DC collector current (ICDC) of 600 A at a case temperature of 60 °C. It offers high short-circuit capability with a repetitive peak collector current (ICRM) of 1200 A. The operating junction temperature range extends up to 150 °C, ensuring robust performance in demanding power conversion environments.

Feature Summary

• High current density and increased blocking voltage capability for enhanced DC-link voltage applications
• PressFIT contact technology providing rugged self-acting assembly without soldering
• Integrated NTC temperature sensor for precise thermal monitoring
• Isolated copper base plate with standard housing design

Applications

• Commercial agriculture vehicles
• Motor drives
• Solar applications
• UPS systems

Procurement Notes

Verify component authenticity by cross-referencing the Data Matrix barcode on the module label with official Infineon records. Ensure the ordering suffix matches the specific variant required, as suffixes may indicate differences in packaging or testing standards. Confirm that the supplier provides valid traceability documentation to guarantee compliance with industrial quality standards.

Selection Notes

Select this module for applications requiring high surge current handling and reliable operation under switching conditions. Verify that the gate driver circuitry aligns with the specified internal gate resistance and recommended voltage levels. Ensure the cooling system maintains the case temperature within limits to sustain the rated 600 A continuous current without exceeding the maximum junction temperature threshold.

Part Context

This component belongs to the EconoDUAL™3 series, designed for medium-power industrial applications. It represents an evolution in IGBT4 technology, focusing on improved short-circuit ruggedness and simplified mechanical integration through PressFIT terminals. The module is engineered to replace older generation modules while offering higher power density and reduced stray inductance.

Replacement Considerations

Consult official Infineon substitution guides for direct replacements. Verify pin compatibility and thermal resistance values when considering alternative part numbers. Ensure any substitute module meets the same insulation coordination and mechanical mounting requirements.

FAQ

What is the maximum short-circuit time allowed for this module?

The module supports a short-circuit pulse duration (tp) of up to 10 µs at a junction temperature of 150 °C.

How is the thermal interface material applied?

Thermal Interface Material must be applied within the restricted area defined in the package outline drawings to ensure optimal heat transfer to the heatsink.

What is the typical forward voltage of the integrated diode?

The typical forward voltage (VF) of the diode is 1.55 V at a forward current of 600 A and a junction temperature of 25 °C.
