FF600R12IE4BOSA1

Overview

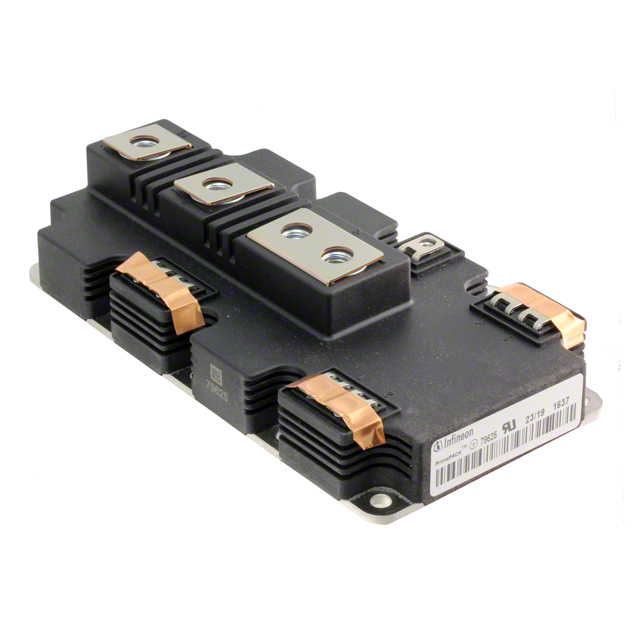

The FF600R12IE4BOSA1 is a half-bridge IGBT module from Infineon Technologies, utilizing Trenchstop IGBT4 technology. It features a PrimePACK™2 housing with an integrated NTC thermistor. Key electrical parameters include a collector-emitter voltage (VCES) of 1200 V and a continuous DC collector current (IC nom) of 600 A at TC = 100°C. The typical collector-emitter saturation voltage (VCEsat) is 1.75 V at Tvj = 25°C. Total power dissipation reaches 3.35 kW at TC = 25°C. The module supports an operating junction temperature range from -40°C to +150°C.

Feature Summary

• High short-circuit capability with self-limiting short-circuit current
• Low switching losses for improved efficiency
• Positive temperature coefficient for VCEsat ensuring stable parallel operation
• Robust insulation with 4 kV AC isolation strength

Applications

• Motor drives
• Resonant inverter applications
• Traction drives
• UPS systems
• Wind turbines

Procurement Notes

Verify the specific ordering suffix BOSA1 against official documentation to confirm exact manufacturing details. Ensure compliance with RoHS directives as indicated by the manufacturer. Confirm that the PrimePACK™2 package dimensions match the mechanical constraints of the target assembly. Validate thermal interface material specifications for optimal heat transfer performance.

Selection Notes

Select this module for high-power industrial applications requiring robust short-circuit withstand capability. Consider the 1200 V rating and 600 A current capacity for medium-voltage drive systems. Evaluate the thermal resistance values to design appropriate cooling solutions. Verify gate drive requirements align with the specified internal gate resistor and threshold voltages.

Part Context

This component belongs to the Trenchstop IGBT4 product family, designed for high reliability and performance. The PrimePACK™2 housing offers high power density and excellent thermal cycling capability. It integrates emitter-controlled diodes for optimized reverse recovery characteristics. The series is widely used in demanding industrial and renewable energy environments.

Replacement Considerations

Consult official Infineon cross-reference guides for verified substitutes. Ensure replacement modules maintain compatible voltage, current, and thermal ratings. Verify mechanical footprint compatibility for direct mounting. Check if alternative packages require different gate drive or cooling configurations.
