FF600R12ME4EB11BPSA1

Overview

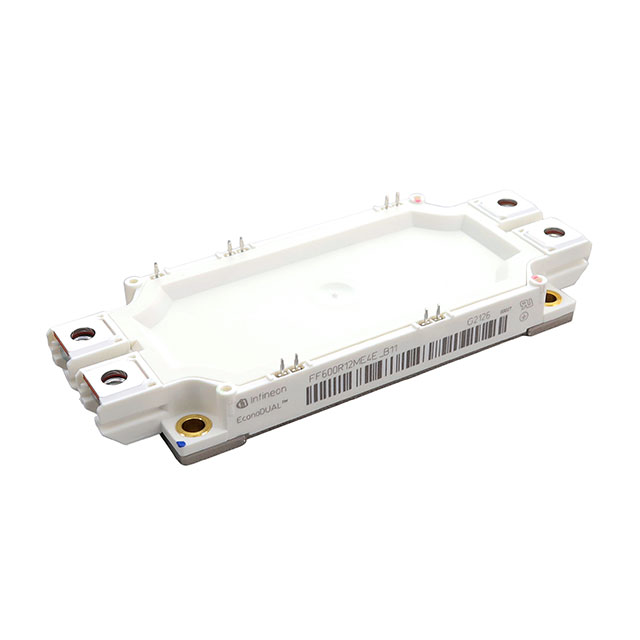

The FF600R12ME4EB11BPSA1 is a Trench Field Stop IGBT module from Infineon Technologies, housed in the EconoDUAL 3 package. It features two independent switches with a collector-emitter voltage of 1200 V and a continuous collector current of 600 A at 25°C. The saturation voltage is 1.75 V, and the maximum junction temperature is 150°C. This component utilizes silicon technology for high-efficiency power switching applications.

Feature Summary

• Trench Field Stop IGBT technology for optimized switching performance
• EconoDUAL 3 packaging for compact integration
• Dual independent switch configuration

Applications

• Industrial motor drives
• Uninterruptible Power Supplies (UPS)
• Solar inverters

Procurement Notes

Verify the exact part number suffix against official Infineon documentation to ensure correct variant identification. Confirm RoHS compliance status and specific ordering codes directly with the manufacturer or authorized distributors prior to procurement. Check for any recent lifecycle updates or recommended replacement parts.

Selection Notes

Select this module for applications requiring high current density and efficient switching in medium-power scenarios. Ensure thermal management solutions support the specified junction temperature limits. Verify compatibility with the EconoDUAL 3 footprint and pinout requirements of the target design.

Part Context

This component belongs to the TRENCHSTOP IGBT4 family within the EconoDUAL series. It represents a silicon-based solution designed for robust performance in industrial power electronics. The module integrates advanced field-stop technology to enhance switching characteristics compared to earlier generations.

Replacement Considerations

Consult official Infineon substitution guides for compatible alternatives. No direct public substitute part numbers are confirmed in the provided data.
