FF600R12ME7B11BPSA1

Overview

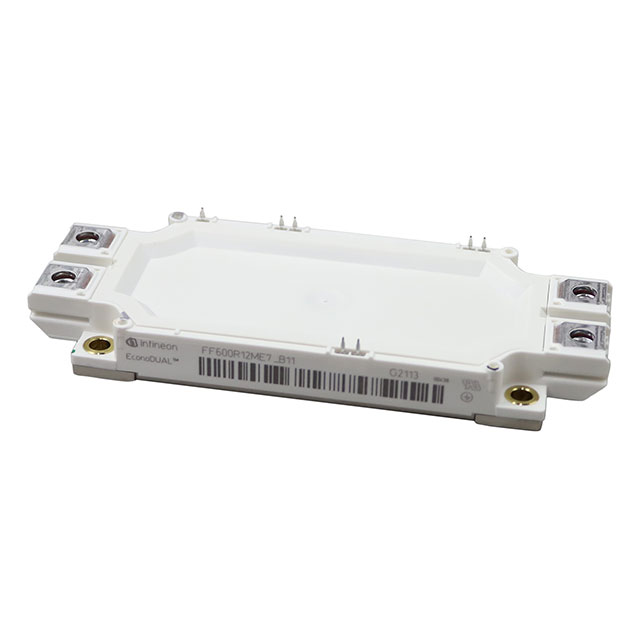

The FF600R12ME7B11PSA1 is a dual IGBT module in the EconoDUAL™3 housing, utilizing TRENCHSTOP™ IGBT7 and emitter-controlled EC7 diode technology. It features an isolated copper base plate with PressFIT contact technology for PCB mounting. Key electrical parameters include a collector-emitter voltage (VCES) of 1200 V, a continuous DC collector current (ICDC) of 600 A at TC=85°C, and a repetitive peak collector current (ICRM) of 1200 A. The typical saturation voltage (VCE,sat) is 1.5 V at Tvj=25°C. An integrated NTC thermistor provides temperature monitoring.

Feature Summary

• TRENCHSTOP™ IGBT7 and EC7 diode technology for optimized switching performance
• PressFIT contact technology for reliable PCB connection
• Integrated NTC thermistor for thermal management
• Isolated base plate design

Applications

• Commercial agriculture vehicles
• High-power converters
• Motor drives
• Servo drives
• UPS systems

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to ensure correct package type and terminal configuration. Confirm that the component meets industrial qualification standards per IEC 60747, 60749, and 60068. Ensure compatibility with recommended gate drivers and application notes regarding mounting torque and thermal interface material.

Selection Notes

Select this module for applications requiring high power density and robust industrial reliability. The 1200 V rating suits medium-voltage AC/DC conversion. Verify thermal resistance requirements against the system's heat sink capabilities. Consider the positive temperature coefficient of VCE,sat for parallel operation stability.

Part Context

This component belongs to the Infineon EconoDUAL™3 family featuring seventh-generation trench technology. It is designed for industrial applications rather than automotive use, as it lacks AEC Q100/Q101 qualification. The module integrates both IGBT and diode switches in a single half-bridge configuration.

Replacement Considerations

Consult official Infineon cross-reference lists for verified substitutes. Ensure any replacement maintains identical mechanical dimensions, pinout configuration, and electrical ratings.
