FF750R12ME7B11BPSA1

Overview

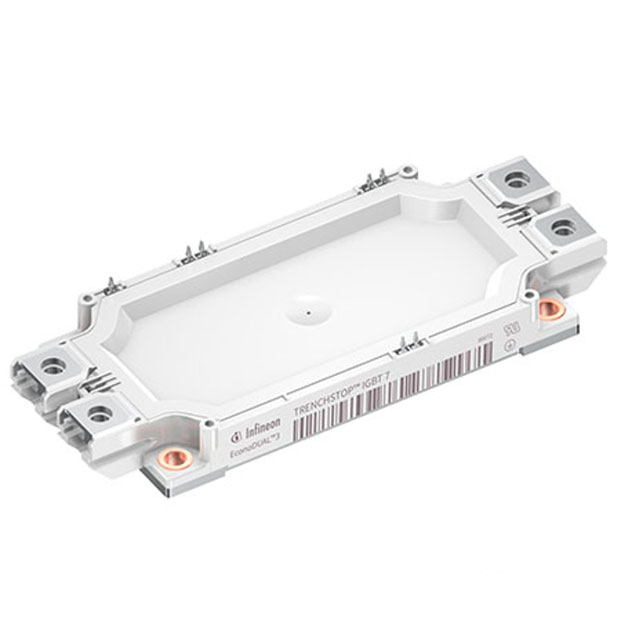

The FF750R12ME7B11BPSA1 is a dual IGBT module from Infineon's EconoDUAL™3 series, utilizing TRENCHSTOP™ IGBT7 technology. It features a maximum collector-emitter voltage (VCES) of 1200 V and a continuous DC collector current (ICDC) of 750 A at a case temperature of 90 °C. The module incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. Key electrical parameters include a typical saturation voltage of 1.50 V and a repetitive peak collector current of 1500 A. It employs PressFIT contact technology for mounting.

Feature Summary

• TRENCHSTOP™ IGBT7 technology providing reduced switching losses and positive temperature coefficient for saturation voltage
• Integrated emitter-controlled diode with optimized reverse recovery characteristics
• Built-in NTC thermistor for precise junction temperature monitoring
• PressFIT contact technology ensuring reliable connection without soldering

Applications

• Commercial agriculture vehicles
• High-power converters
• Motor drives
• Servo drives
• UPS systems

Procurement Notes

Verify the specific ordering suffix B11 against official documentation to confirm mechanical and electrical specifications match the design requirements. Ensure that the procurement channel provides original manufacturer packaging to maintain component integrity. Cross-reference the datasheet revision number to access the most current technical data and application notes before finalizing orders.

Selection Notes

Select this module for applications requiring high power density and efficient thermal management in industrial environments. Consider the 1200 V rating and 750 A continuous current capability when designing the power stage. Verify that the system layout supports the required PressFIT mounting torque and that the heatsink interface meets the specified thermal resistance values for optimal performance under load conditions.

Part Context

This component belongs to the Infineon EconoDUAL™3 family, designed for medium to high-power industrial applications. It represents the seventh generation of TRENCHSTOP™ IGBT technology, offering improved efficiency compared to previous generations. The module integrates both IGBT and diode chips on a single isolated copper base plate, simplifying assembly and enhancing reliability in demanding power conversion scenarios.

Replacement Considerations

Direct replacements within the same package and specification range should be sought from the Infineon EconoDUAL™3 portfolio. Verify compatibility regarding pinout, thermal resistance, and mounting dimensions before substitution. Consult official cross-reference lists or application notes for recommended alternatives with similar electrical ratings and mechanical footprints.

FAQ

What is the maximum repetitive peak collector current for this module?

The maximum repetitive peak collector current (ICRM) is 1500 A, limited by the operating junction temperature.

Does this module include an integrated temperature sensor?

Yes, it includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C for monitoring junction temperature.

What type of contact technology does the EconoDUAL™3 housing use?

It uses PressFIT contact technology, which allows for secure mounting without traditional soldering processes.
