Product Detailed Parameters
- Description：MEDIUM POWER ECONO
- Series：EconoDUAL™, TRENCHSTOP™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Half Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 900A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONOD
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：890 A
- Power - Max：-
- Current - Collector Cutoff (Max)：100 µA
- Input Capacitance (Cies) @ Vce：122 nF @ 25 V
Download product information
Overview

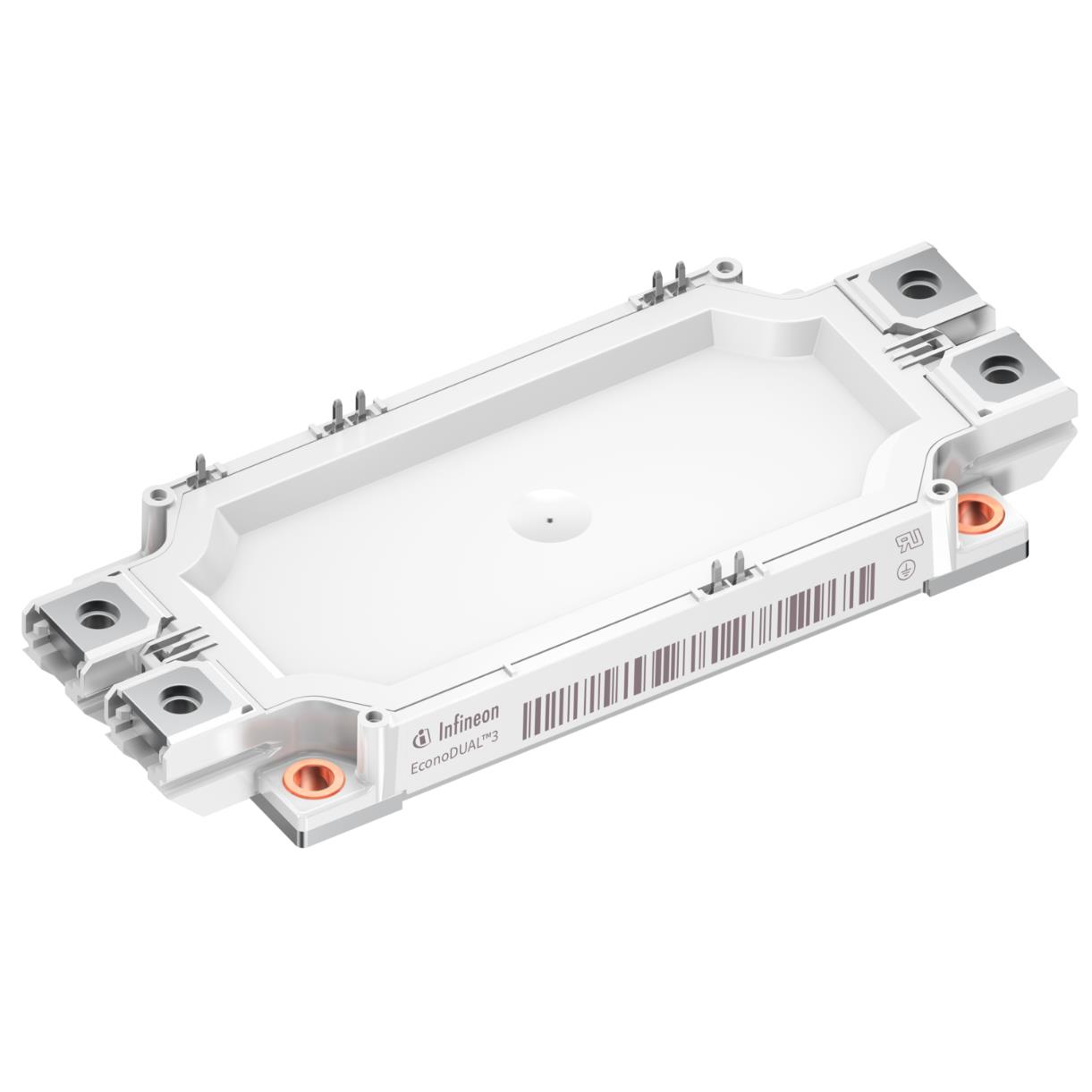

The FF900R12ME7WB11BPSA1 is a half-bridge IGBT module from Infineon's EconoDUAL™3 family, utilizing TRENCHSTOP™ IGBT7 technology. It features an isolated copper base plate with direct-cooling capability and PressFIT contact technology. The device supports a collector-emitter voltage of 1200 V and a continuous DC collector current of 890 A at 25°C case temperature. Key electrical parameters include a typical saturation voltage of 1.5 V and a maximum repetitive peak collector current of 1800 A. An integrated NTC thermistor provides thermal monitoring.
Feature Summary
- TRENCHSTOP™ IGBT7 technology for optimized switching performance
- Direct-cooled isolated base plate for high power density
- Integrated NTC thermistor for precise temperature sensing
- PressFIT contact technology for robust mechanical connection
Applications
- High-power converters
- Motor drives
- Servo drives
- UPS systems
- Commercial agriculture vehicles
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm package type and terminal configuration. Ensure compatibility with recommended mounting torque specifications and cooling circuit pressure limits during integration. Confirm that gate driver selection aligns with the internal gate resistance requirements specified in the datasheet.
Selection Notes
Select this component for applications requiring high current handling and efficient thermal management via direct cooling. Evaluate the thermal resistance values under specific coolant flow rates to ensure junction temperatures remain within operational limits. Consider the stray inductance characteristics when designing the DC-link layout to minimize voltage overshoot during switching events.
Part Context
This module belongs to the EconoDUAL™3 series, designed for industrial applications. It represents the seventh generation of TRENCHSTOP™ technology, offering improved power cycling capability compared to previous generations. The standard housing facilitates integration into various inverter topologies used in renewable energy and traction systems.
Replacement Considerations
Consult official substitution lists for compatible modules within the same voltage and current class. Verify pinout compatibility and thermal interface requirements before replacing existing designs with alternative part numbers.
