FMAC-0A24-0813

Power Line Filter Modules Overview

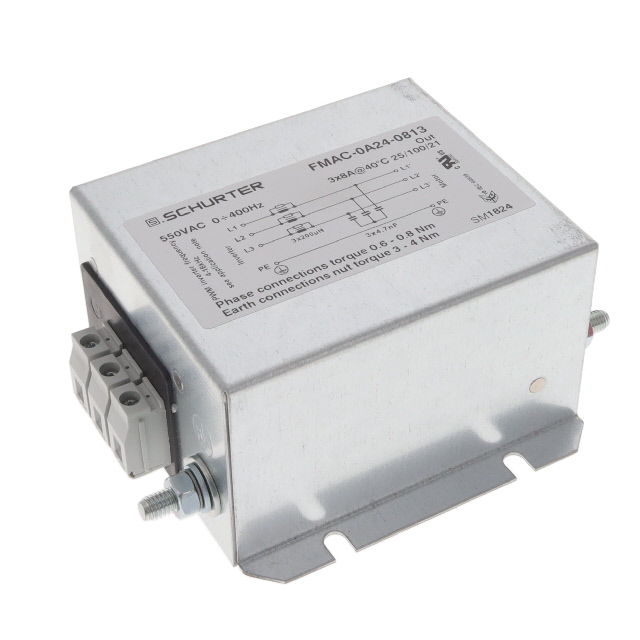

The Schurter FMAC-0A24-0813 is a three-phase single-stage EMC/EMI line filter designed for frequency inverter output applications. It features an 8 A current rating and supports voltages up to 550 V AC at 50/60 Hz frequencies. The unit utilizes chassis mount installation with terminal block connections. Constructed with a metal housing, it serves as an output filter component within power conditioning systems.

Power Line Filter Modules Feature Summary

• Designed specifically for three-phase frequency inverter output filtering
• Single-stage EMC/EMI suppression capability
• Metal housing construction for durability

Power Line Filter Modules Applications

• Frequency inverter output filtering
• Three-phase power conditioning systems
• EMC/EMI suppression in industrial drives

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating of 550 V AC against system requirements. Confirm terminal block compatibility for the 8 A current load. Ensure chassis mounting provisions align with the enclosure design. Check for any specific certification requirements such as UL or VDE depending on the target market regulations.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for inverter output noise reduction. Consider the 8 A limit relative to peak motor currents. Evaluate the chassis mount form factor against available panel space. Compare leakage current specifications if sensitive downstream equipment is present.

Power Line Filter Modules Part Context

This component belongs to the FMAC-Out series by Schurter Inc., specialized for output filters in three-phase drive systems. It addresses electromagnetic interference generated by variable speed drives. The product integrates into industrial automation setups requiring compliant power quality.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
