FO5HSCDM66.0-T1

Oscillators Overview

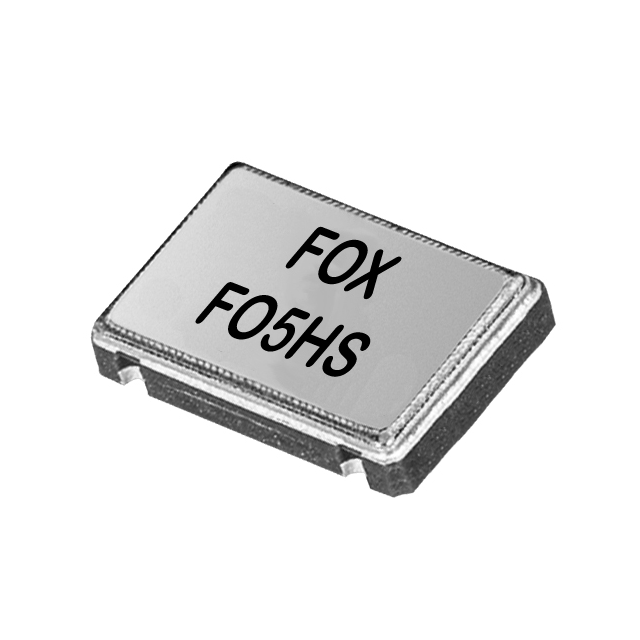

The Fox Electronics FO5HSCDM66.0-T1 is a surface-mount crystal oscillator generating a 66.0 MHz output frequency with HCMOS logic levels. It operates on a 3.3V supply and features a frequency stability of ±50 ppm. The device is housed in a compact 4-SMD, no-lead package measuring 5.00 mm in length, 3.20 mm in width, and 1.30 mm in height. It supports an operating temperature range from -10°C to 70°C and includes a standby function for power management.

Oscillators Feature Summary

• Generates a precise 66.0 MHz clock signal using standard HCMOS output levels for digital interface compatibility.
• Incorporates a standby mode to reduce power consumption when the oscillator is not actively driving the load.

Oscillators Applications

• Clock generation for embedded microprocessors and microcontrollers requiring 66 MHz timing references.
• Synchronization circuits in data communication interfaces utilizing standard CMOS logic families.
• Digital signal processing systems where stable frequency sources are required within commercial temperature ranges.

Oscillators Procurement Notes

Verify that the target application voltage matches the specified 3.3V supply requirement to ensure proper operation. Confirm that the PCB footprint accommodates the 5.00 x 3.20 mm SMD package dimensions and the 1.30 mm maximum height. Ensure the thermal environment remains within the -10°C to 70°C operating range. Check for any specific loading capacitance requirements defined by the host circuit design to maintain the stated ±50 ppm stability.

Oscillators Selection Notes

Select this component when a 66.0 MHz frequency is specifically required rather than the similar 66.666 MHz variant. Choose this model if the system design mandates a 3.3V supply rail and standard HCMOS output swing. Consider this part for applications needing a low-profile SMD package with integrated standby functionality. Verify that the commercial temperature range of -10°C to 70°C meets the environmental constraints of the final product deployment.

Oscillators Part Context

This oscillator belongs to the F535L series from Fox Electronics, designed for general-purpose clocking needs. It utilizes a fundamental crystal resonator to provide high-frequency stability. The part is manufactured as a complete XO unit, integrating the resonator and oscillator circuit into a single surface-mount component for ease of assembly.

Oscillators FAQ

What is the output logic family for this oscillator?

The FO5HSCDM66.0-T1 provides an HCMOS (High-speed CMOS) output signal compatible with standard digital logic inputs.

Does this component support power-down modes?

Yes, the device includes a standby function that allows the oscillator to be disabled to minimize current consumption.
