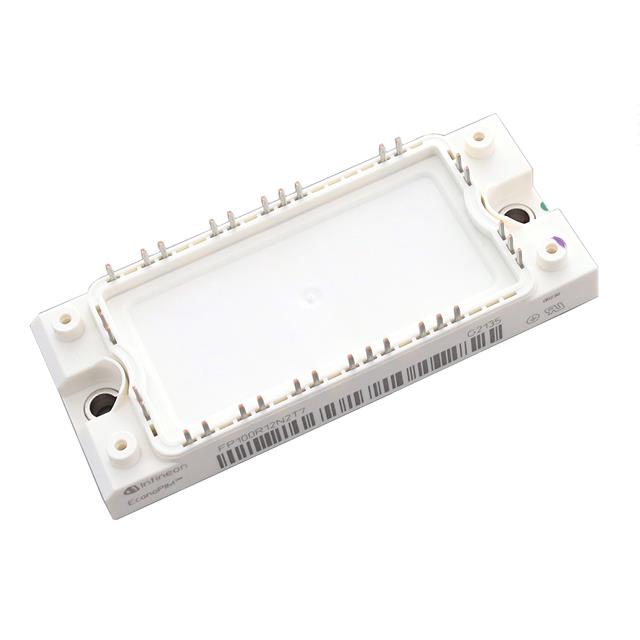

FP100R12N2T7BPSA1

$126.42

Description：LOW POWER ECONO AG-ECONO2-4
Series：EconoPIM™ 2

SKU:825a89fd7f3a Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO2-4
Series：EconoPIM™ 2
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：1.5V @ 15V, 100A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2B
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：100 A
Power - Max：-
Current - Collector Cutoff (Max)：10 µA
Input Capacitance (Cies) @ Vce：21.7 nF @ 25 V

Download product information

FP100R12N2T7BPSA1

Overview

The FP100R12N2T7BPSA1 is a TRENCHSTOP™ IGBT7 EconoPIM™2 module featuring an integrated NTC thermistor. It provides a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 100 A at 95 °C case temperature, with a repetitive peak current capability of 200 A. The inverter diode supports 100 A continuous forward current. The brake-chopper IGBT is rated for 50 A continuous current, while its associated diode handles 35 A. The module incorporates an Al2O3 substrate with a copper base plate and utilizes solder contact technology.

Feature Summary

Integrates TRENCHSTOP™ IGBT7 technology with Emitter Controlled 7 diodes for optimized switching performance.
Includes an embedded NTC thermistor for precise internal temperature monitoring.
Constructed with an Al2O3 substrate and copper base plate to ensure low thermal resistance.
Validated for industrial applications according to IEC 60747, 60749, and 60068 standards.

Applications

Servo drives
Auxiliary inverters
Motor drives

Procurement Notes

Verify the specific ordering suffix BPSA1 against official Infineon documentation to confirm compliance with RoHS directives and packaging specifications. Ensure that the procurement channel sources genuine components directly from authorized distributors or the manufacturer to prevent counterfeit products. Cross-reference the datasheet revision date with the production batch to account for any potential technical updates.

Selection Notes

Select this module for three-phase inverter configurations requiring high power density and robust overload capabilities up to 175°C junction temperature. Consider the integrated NTC sensor if active thermal management is required. Verify that the application's thermal design accommodates the specified thermal resistances and mounting torque requirements for reliable long-term operation.

Part Context

This component belongs to the Infineon EconoPIM™2 series, designed for compact power conversion systems. It combines IGBTs and diodes in a single package to reduce stray inductance and simplify assembly. The TRENCHSTOP™ IGBT7 generation offers improved efficiency compared to previous technologies, making it suitable for demanding industrial motor control environments.
