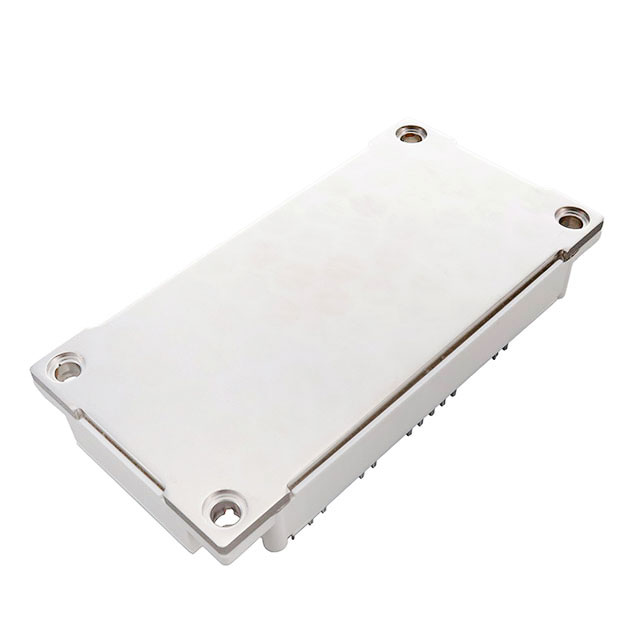

FP100R12N3T7B16BPSA1

$103.25

Description：LOW POWER ECONO AG-ECONO3B-711
Series：-

SKU:4fce827a481b Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO3B-711
Series：-
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：-
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：100 A
Power - Max：-
Current - Collector Cutoff (Max)：-
Input Capacitance (Cies) @ Vce：-

Download product information

FP100R12N3T7B16BPSA1

Overview

The FP100R12N3T7B16BPSA1 is an EconoPIM™3 power module manufactured by Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology and Emitter Controlled 7 diodes. It features a 1200 V collector-emitter voltage rating with a nominal continuous DC collector current of 100 A at 25°C and a repetitive peak current of 200 A. The module includes an integrated NTC thermistor for thermal monitoring and operates within a junction temperature range of -40°C to +175°C.

Feature Summary

Incorporates seventh-generation TRENCHSTOP™ IGBT7 micro-pattern trench technology for optimized controllability and reduced switching losses in industrial drive applications.
Features high mechanical robustness and superior power cycling capability through copper base plate construction and Al2O3 substrate integration.
Includes an embedded NTC temperature sensor for precise real-time thermal management and protection against overheating.

Applications

Auxiliary inverters
Motor drives
Servo drives

Procurement Notes

Verify the specific ordering suffix B16 against official documentation to confirm exact packaging or variant specifications. Ensure compliance with industrial qualification standards such as IEC 60747, 60749, and 60068 before deployment. Confirm that the component meets the required insulation coordination and mounting torque specifications for the target application environment.

Selection Notes

Select this module for designs requiring high power density and efficient thermal management in variable speed drives. Consider the low saturation voltage and fast switching characteristics when designing gate driver circuits. Evaluate the stray inductance and thermal resistance parameters to ensure adequate heatsinking and system stability under overload conditions up to 175°C.

Part Context

This component belongs to the EconoPIM™3 series, designed for compact and efficient power conversion solutions. It integrates both inverter and brake-chopper functionalities within a single package, supporting industrial applications that demand reliable performance and high thermal cycling endurance.

Replacement Considerations

Consult official replacement lists for compatible modules within the EconoPIM™3 family or other TRENCHSTOP™ IGBT7 series components. Verify pinout compatibility and electrical ratings before substituting to ensure seamless integration without redesigning the PCB layout or cooling infrastructure.

FAQ

What is the maximum operating junction temperature for this module?

The module supports a maximum operating junction temperature of 175°C, allowing for overload operation under specific conditions as detailed in the application notes.

Does the module include thermal protection features?

Yes, the module integrates an NTC thermistor with a rated resistance of 5 kΩ at 25°C to enable accurate temperature monitoring and thermal management.
