FP50R12N2T7B11BPSA1

Overview

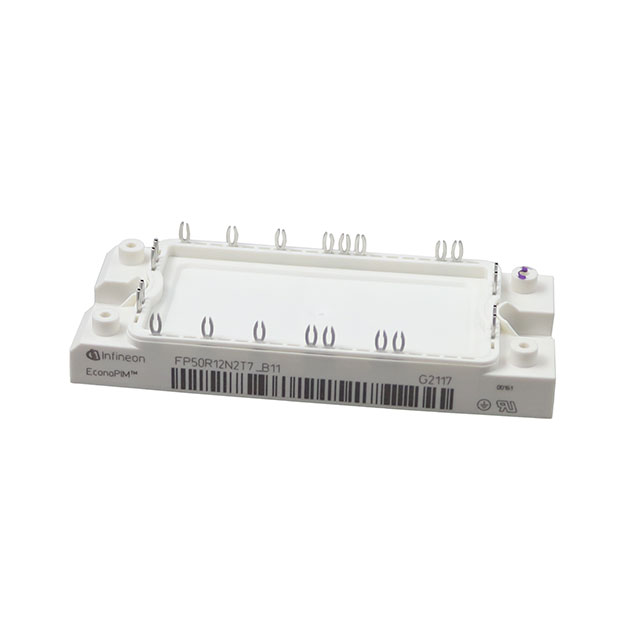

The FP50R12N2T7B11BPSA1 is an EconoPIM™2 module featuring TRENCHSTOP™ IGBT7 and Emitter Controlled 7 diodes. It provides a collector-emitter voltage (VCES) of 1200 V with a nominal continuous DC collector current (ICDC) of 50 A at TC = 100 °C and a repetitive peak current (ICRM) of 100 A. The saturation voltage (VCEsat) is typically 1.50 V at Tvj = 25 °C. The integrated NTC thermistor has a rated resistance (R25) of 5 kΩ. Insulation coordination includes a 2.5 kV isolation test voltage, copper base plate, and Al2O3 substrate.

Feature Summary

• Utilizes seventh-generation trench gate and field-stop IGBT technology for low saturation voltage and high thermal cycling capability.
• Incorporates press-fit contact technology to eliminate solder joints, enhancing mechanical robustness and power density.
• Includes an integrated NTC temperature sensor for precise junction temperature monitoring.
• Features a compact design with a copper base plate and low thermal resistance aluminum oxide substrate.

Applications

• Auxiliary inverters
• Motor drives
• Servo drives

Procurement Notes

Verify the specific ordering suffix B11 against the manufacturer's official documentation to confirm exact configuration details. Ensure that the procurement channel sources components directly from authorized distributors or the manufacturer to guarantee authenticity. Confirm compliance with industrial qualification standards such as IEC 60747, 60749, and 60068 prior to integration into final equipment designs.

Selection Notes

Select this module for applications requiring high power density and reliable operation in motor drive systems. The press-fit termination method requires compatible mating connectors designed for force-controlled insertion. Evaluate thermal management requirements based on the specified thermal resistance values and ensure the heatsink interface maintains the necessary contact pressure for optimal heat dissipation.

Part Context

This component belongs to Infineon's EconoPIM™2 series, which integrates rectifier, inverter, and chopper stages into a single package. It utilizes the IGBT7 generation technology, offering improved switching characteristics compared to previous generations. The module is designed for industrial applications and is not qualified for automotive use according to AEC Q100 standards.

Replacement Considerations

Direct pin-to-pin replacements within the same package family may include variants with different current ratings or saturation voltages. Verify electrical parameters and thermal characteristics carefully when substituting. Consult the official replacement matrix for confirmed equivalent part numbers.

FAQ

What is the maximum operating junction temperature?

The maximum operating junction temperature (Tvj op) is 175 °C. Operation above 150 °C is permitted under overload conditions as specified in application note AN 2018-14.

Does the module include a rectifier stage?

Yes, the EconoPIM™2 topology includes a three-phase input rectifier stage in addition to the inverter and chopper stages.

What is the insulation test voltage?

The module supports an isolation test voltage (VISOL) of 2.5 kV RMS for 1 minute at 50 Hz.
