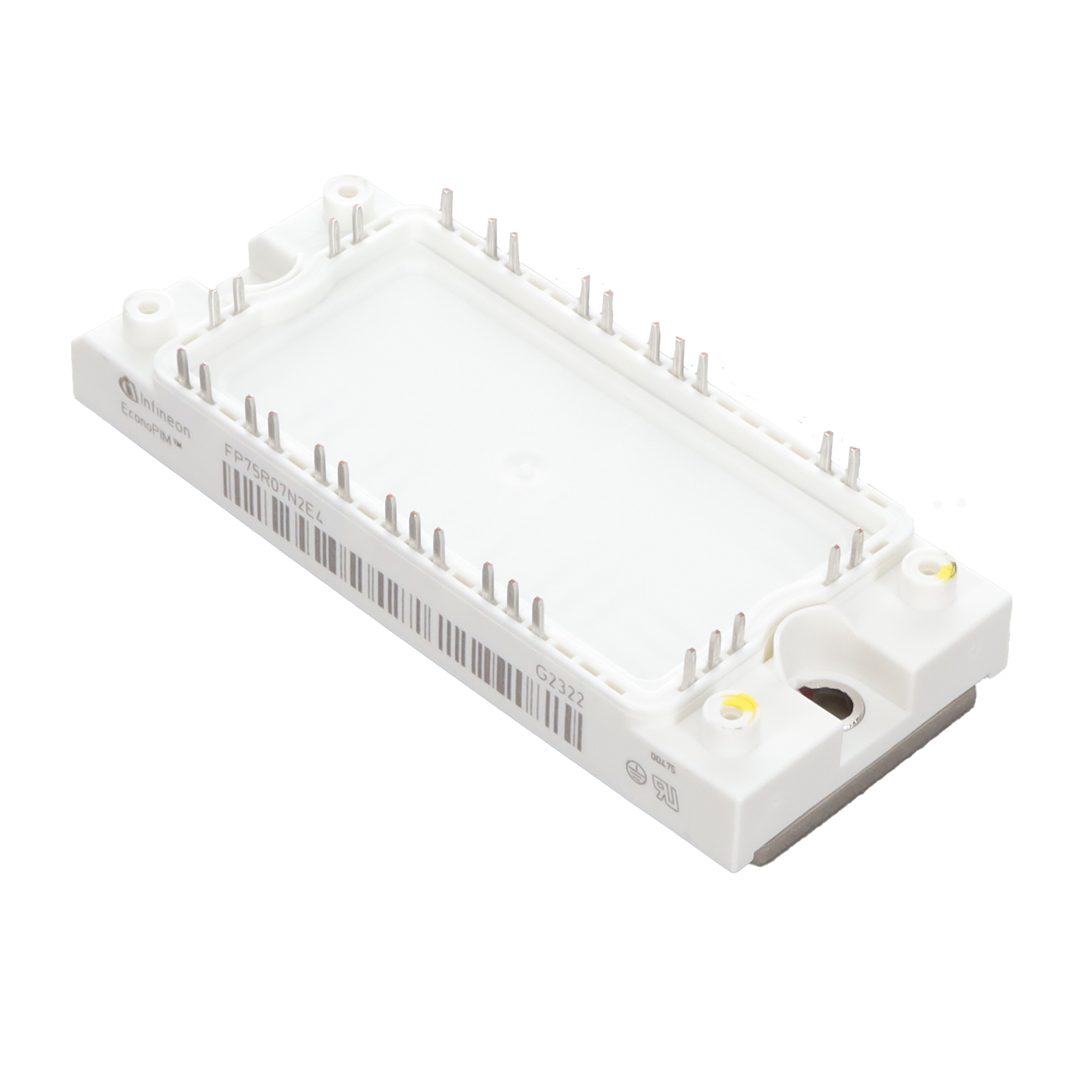

FP75R07N2E4BPSA1

$54.08

Description：LOW POWER ECONO AG-ECONO2B-411
Series：EconoPIM™ 2

SKU:61354af34a4f Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO2B-411
Series：EconoPIM™ 2
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：1.95V @ 15V, 75A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2B
Voltage - Collector Emitter Breakdown (Max)：650 V
Current - Collector (Ic) (Max)：95 A
Power - Max：-
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：4.6 nF @ 25 V

Download product information

FP75R07N2E4BPSA1

Overview

The FP75R07N2E4BPSA1 is an EconoPIM™2 module integrating Trench/Fieldstop IGBT4 and Emitter Controlled 3 diodes with an NTC sensor. It features a collector-emitter voltage (VCES) of 650 V, continuous DC collector current (IC nom) of 75 A at TC=70°C, and repetitive peak collector current (ICRM) of 150 A. The typical saturation voltage (VCEsat) is 1.55 V at Tvj=25°C. The integrated rectifier diode supports a repetitive peak reverse voltage (VRRM) of 1600 V. Thermal resistance from junction to case (RthJC) is 0.600 K/W per IGBT and 0.950 K/W per inverter diode.

Feature Summary

High short-circuit capability for robust operation under fault conditions
Positive temperature coefficient for VCEsat enabling safe parallel operation
Integrated NTC temperature sensor for reliable thermal monitoring
Isolated copper base plate providing electrical insulation

Applications

Motor drives
Three-phase input rectifiers
Inverter circuits

Procurement Notes

Verify the exact ordering suffix against official Infineon documentation before purchase. Confirm that the specific variant matches the required pinout and internal configuration. Ensure compliance with RoHS directives and check for any specific handling requirements during storage and assembly.

Selection Notes

Select this component for applications requiring high blocking voltage and moderate current levels. Consider the thermal resistance values when designing heatsinking solutions. Evaluate the switching losses at the intended operating frequency and gate resistance to ensure efficiency targets are met within the specified temperature range.

Part Context

This module belongs to the EconoPIM™2 series, designed for compact power conversion systems. It utilizes Trench/Fieldstop IGBT4 technology combined with Emitter Controlled 3 diodes. The packaging provides a standardized footprint suitable for industrial power electronics, facilitating integration into motor drive and rectifier topologies.
