Product Detailed Parameters
- Description：LOW POWER ECONO
- Series：EconoPIM™3
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 75A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO3
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：-
- Current - Collector Cutoff (Max)：13 µA
- Input Capacitance (Cies) @ Vce：15.1 nF @ 25 V
Download product information
Overview

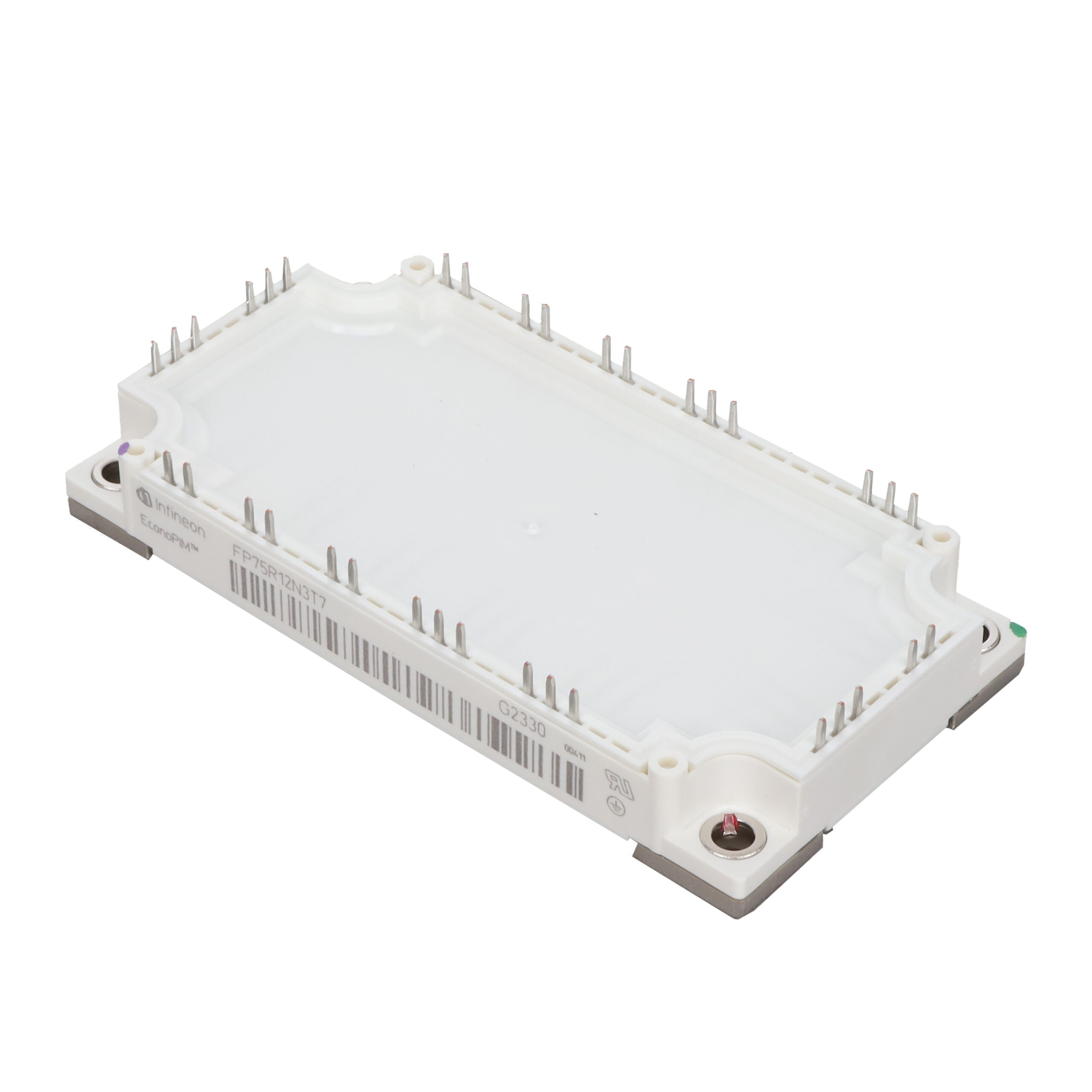

The FP75R12N3T7BPSA1 is an Infineon EconoPIM™3 module utilizing TRENCHSTOP™ IGBT7 technology. It features a 1200 V collector-emitter voltage (VCES) and a nominal continuous DC collector current of 75 A at a case temperature of 100 °C. The inverter IGBT exhibits a typical saturation voltage (VCE,sat) of 1.55 V at 25 °C, while the integrated emitter-controlled diode shows a forward voltage (VF) of 1.72 V under identical conditions. The module supports overload operation up to a junction temperature of 175 °C and includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C for thermal monitoring.
Feature Summary
- Incorporates TRENCHSTOP™ IGBT7 technology for low conduction losses and high power density.
- Features an integrated NTC temperature sensor for precise thermal management.
- Constructed with a copper base plate and Al2O3 substrate for efficient heat dissipation.
- Designed for robust mechanical performance with high power cycling capability.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix BPSA1 against official Infineon documentation to confirm packaging details and compliance certifications. Ensure that the procurement channel provides valid traceability data. Confirm that the component meets the required industrial qualification standards specified in the datasheet before finalizing orders.
Selection Notes
Select this module for applications requiring high efficiency and compact design within the 1200 V class. Consider the thermal resistance values and the maximum junction temperature limits when designing the heatsink interface. Verify that the gate drive circuitry accommodates the internal gate resistor and charge requirements for optimal switching performance.
Part Context
This component belongs to the Infineon EconoPIM™3 family, which integrates three-phase inverter and rectifier functions into a single package. It utilizes the advanced TRENCHSTOP™ IGBT7 generation, offering improved switching characteristics compared to previous technologies like IGBT4 or IGBT3. The module is designed for industrial applications requiring high reliability.
Replacement Considerations
Direct replacements may include other Infineon EconoPIM™3 modules with similar current ratings, such as the FP75R12KT4PB11BPSA1. However, differences in topology, such as Sixpack versus PIM configurations, must be evaluated carefully to ensure compatibility with the existing circuit design and thermal constraints.
FAQ
What is the maximum operating junction temperature for this module?
The module supports overload operation up to a maximum junction temperature of 175 °C.
Does the module include an integrated temperature sensor?
Yes, it features an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C.
What is the stray inductance value of the module?
The module has a typical stray inductance (LsCE) of 35 nH.
