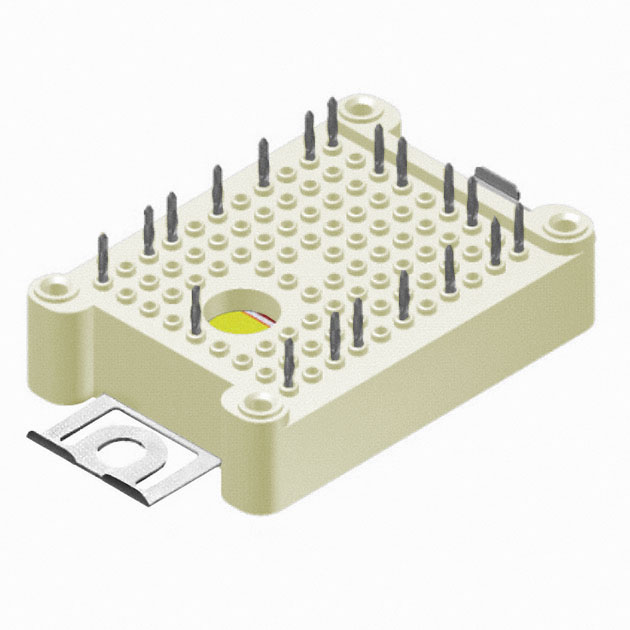

FPF1C2P5BF07A

Description：MOSFET 5N-CH 650V 36A F1
Series：-

SKU:838938183c1a Category: FET, MOSFET Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FPF1C2P5BF07A is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists onsemi. Its product description is MOSFET 5N-CH 650V 36A F1. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for FPF1C2P5BF07A

Description：MOSFET 5N-CH 650V 36A F1
Series：-
Mfr：onsemi
Package：Tray
Technology：MOSFET (Metal Oxide)
Configuration：5 N-Channel (Solar Inverter)
FET Feature：-
Drain to Source Voltage (Vdss)：650V
Current - Continuous Drain (Id) @ 25°C：36A
Rds On (Max) @ Id, Vgs：90mOhm @ 27A, 10V
Vgs(th) (Max) @ Id：3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：250W
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：F1 Module
Supplier Device Package：F1
Grade：-
Qualification：-

FET, MOSFET Arrays datasheet and documents for FPF1C2P5BF07A

FPF1C2P5BF07A

FET, MOSFET Arrays Overview

The FPF1C2P5BF07A is a power management integrated module from onsemi’s F1 series, designed for photovoltaic applications. It integrates a DC-DC converter capable of operating at 650V input and delivering up to 30A output current. The component is engineered to provide efficient power conversion within compact form factors suitable for solar energy systems.

FET, MOSFET Arrays Feature Summary

Integrated F1 module solution tailored for photovoltaic applications
Supports high voltage DC-DC conversion with 650V capability
Delivers high current output up to 30A for system efficiency

FET, MOSFET Arrays Applications

Photovoltaic (PV) power systems
Solar energy conversion modules
High voltage DC-DC power supply units

FET, MOSFET Arrays Procurement Notes

Verify the specific datasheet version and application notes provided by onsemi for the FPF1C2P5BF07A to ensure compatibility with your photovoltaic design requirements. Confirm thermal management specifications and mounting constraints against your system layout. Cross-reference official documentation for any updates regarding electrical characteristics or recommended operating conditions prior to finalizing procurement decisions.

FET, MOSFET Arrays Selection Notes

Select the FPF1C2P5BF07A when designing PV systems requiring a compact, high-voltage DC-DC solution. Ensure the application demands align with its 650V and 30A capabilities. Evaluate thermal performance and integration needs within the solar inverter or optimizer architecture. Consult official onsemi resources for detailed pinout and timing specifications to guarantee proper implementation.

FET, MOSFET Arrays Part Context

This component belongs to onsemi’s F1 module family, which focuses on power management solutions for renewable energy. The FPF1C2P5BF07A specifically addresses the need for efficient power conversion in solar applications, offering a specialized alternative to discrete component designs.
