Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY2B-1
- Series：EasyPACK™
- Mfr：Infineon Technologies
- Package：Bulk,Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：70 A
- Power - Max：-
- Current - Collector Cutoff (Max)：9 µA
- Input Capacitance (Cies) @ Vce：21.7 nF @ 25 V
Download product information
Overview

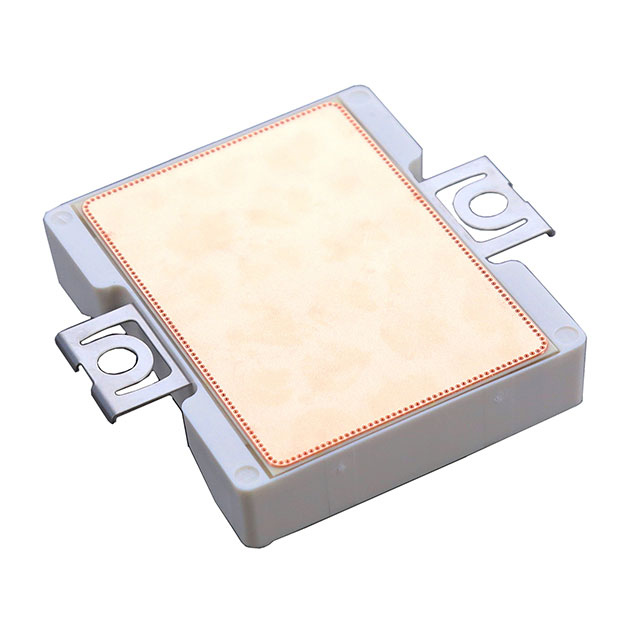

The FS100R12W2T7BOMA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a 1200 V collector-emitter voltage (VCES) and a nominal continuous collector current of 100 A at 25°C, with a repetitive peak current capability of 200 A. The module incorporates emitter-controlled diodes with a forward voltage of 1.72 V at 25°C. Electrical parameters include a typical saturation voltage of 1.50 V and an internal gate resistance of 1.5 Ω. It operates within a junction temperature range of -40°C to 175°C and includes an integrated NTC thermistor rated at 5 kΩ.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and emitter controlled 7 diode technologies for optimized switching performance.
- Features solder contact technology with an Al2O3 substrate to ensure high power density and low thermal resistance.
- Includes an integrated NTC thermistor for precise real-time temperature monitoring.
- Provides 2.5 kV AC insulation for one minute to support robust electrical isolation.
Applications
- Air conditioning systems
- Auxiliary inverters
- Motor drives
- Servo drives
- UPS systems
Procurement Notes
Verify the specific BOMA1 suffix against official documentation to confirm exact material content and compliance status. Confirm that the required gate drivers are sourced from the manufacturer's designated list. Ensure mechanical mounting forces remain between 40 N and 80 N per clamp during installation.
Selection Notes
Select this component for industrial applications requiring high overload capacity up to 175°C. Verify compatibility with recommended gate drivers via the manufacturer's online finder tool. Evaluate thermal management requirements based on the specified junction-to-heat sink thermal resistance values for both IGBT and diode sections.
Part Context
This module belongs to the EasyPACK™ family and utilizes TRENCHSTOP™ IGBT7 technology. It is designed for industrial quality standards according to IEC 60747, 60749, and 60068. The product line focuses on compact design and high power density for various inverter topologies.
Replacement Considerations
Consult official datasheets for direct substitutes within the EasyPACK™ series. Verify pinout compatibility and thermal characteristics before replacing existing modules.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature is 175°C, allowing for overload operation under specific conditions.
Does the module include thermal protection components?
Yes, it integrates an NTC thermistor with a rated resistance of 5 kΩ at 25°C for temperature monitoring.
What is the insulation voltage rating?
The module provides 2.5 kV AC insulation for one minute at 50 Hz.
