Product Detailed Parameters
- Description：IGBT MOD 600V 150A 430W
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 150A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：430 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：9.3 nF @ 25 V
Download product information
Overview

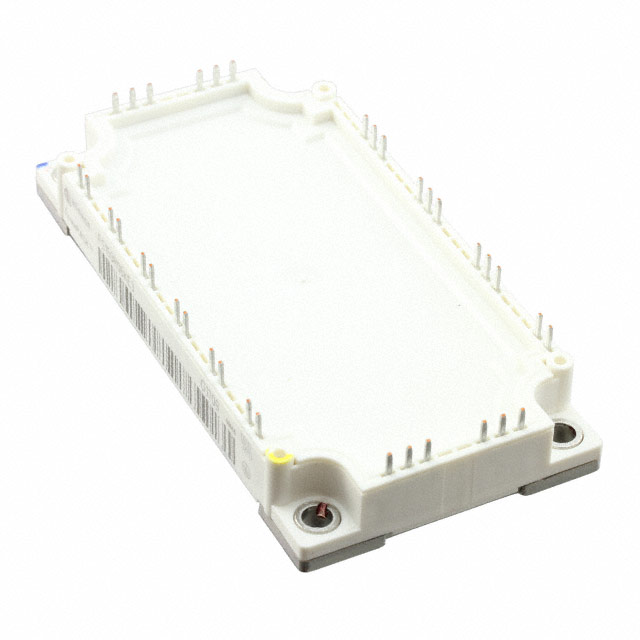

The FS150R06KE3BOSA1 is a six-pack IGBT module from Infineon's Trenchstop IGBT3 series, utilizing silicon technology. It features a collector-emitter voltage of 600 V and a continuous DC collector current of 150 A at 55°C case temperature. The module incorporates fast trench/fieldstop IGBTs and emitter-controlled diodes within an EconoPACK3 housing. Key electrical parameters include a maximum power dissipation of 430 W, a gate-emitter peak voltage of ±20 V, and a junction-to-case thermal resistance of 0.35 K/W per IGBT. Operating temperatures range from -40°C to +150°C.
Feature Summary
- Integrates fast trench/fieldstop IGBTs with emitter-controlled diodes for efficient switching performance.
- Features an integrated NTC thermistor for precise internal temperature monitoring.
- Utilizes the compact EconoPACK3 housing design for simplified mechanical mounting and integration.
Applications
- Three-phase inverter circuits
- Industrial motor drives
- Uninterruptible power supplies (UPS)
- Induction heating systems
Procurement Notes
Verify the specific ordering suffix BOSA1 against official documentation to confirm manufacturing origin and compliance details. Ensure that the component matches the required RoHS and REACH standards for your region. Confirm the package type and pin configuration align with your PCB layout before finalizing procurement orders.
Selection Notes
Select this module based on its 600 V rating and 150 A current capacity suitable for medium-power applications. Evaluate the thermal resistance values to ensure adequate heatsinking for the intended duty cycle. Consider the switching energy losses and short-circuit withstand capability when designing the gate drive circuitry and protection mechanisms.
Part Context
This component belongs to the Infineon Trenchstop IGBT3 family, designed for high-efficiency power conversion. The EconoPACK3 series offers a standardized footprint for easy replacement and system integration. It represents a mature silicon-based solution for robust industrial power electronics applications requiring reliable three-phase control.
Replacement Considerations
Consult official cross-reference lists for verified substitutes. Ensure any alternative maintains compatible voltage, current, and thermal specifications. Verify pinout compatibility and package dimensions to avoid mechanical redesigns during replacement.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current is 300 A for a pulse duration of 1 ms.
What is the rated resistance of the integrated NTC thermistor?
The rated resistance of the NTC thermistor at 25°C is 5.00 kΩ.
What is the isolation test voltage for the module?
The isolation test voltage is 2.5 kV RMS at 50 Hz for one minute.
