Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY1B-1
- Series：EasyPACK™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY1B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：35 A
- Power - Max：-
- Current - Collector Cutoff (Max)：7.3 µA
- Input Capacitance (Cies) @ Vce：6.62 nF @ 25 V
Download product information
Overview

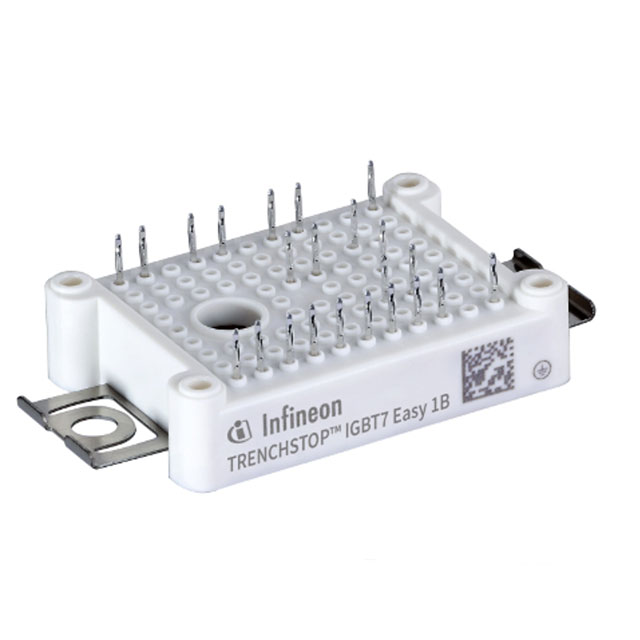

The FS35R12W1T7BOMA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology and emitter-controlled diodes within the EasyPACK™ package. It features a collector-emitter voltage of 1200 V and a continuous DC collector current of 35 A at 105°C case temperature. The typical saturation voltage is 1.6 V at 25°C. The module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C. It supports junction temperatures up to 175°C and provides 2.5 kV AC insulation for one minute.
Feature Summary
- Integrates seventh-generation TRENCHSTOP™ IGBT7 and emitter-controlled EC7 diode technology for optimized switching performance.
- Includes an embedded NTC thermistor for precise thermal monitoring and protection.
- Constructed with an aluminum oxide substrate to ensure low thermal resistance and high power density.
- Provides reinforced basic insulation rated at 2.5 kV AC for one minute.
Applications
- Motor drives
- Air conditioning systems
- Auxiliary inverters
- Servo drives
- UPS systems
Procurement Notes
Verify the specific ordering suffix BOMA1 against official documentation to confirm material content and compliance details. Ensure that the selected gate driver ICs meet the requirements for industrial drives and possess reinforced isolation certification compatible with the module's specifications.
Selection Notes
Select this component for applications requiring moderate switching frequencies and high controllability. Verify that the external gate resistors align with the recommended drive conditions to manage switching losses effectively. Confirm that the PCB hole pattern matches the EasyPACK™ 1B mechanical dimensions for proper mounting.
Part Context
This module belongs to the TRENCHSTOP™ IGBT7 series designed specifically for variable speed drives. It utilizes micro-pattern trench technology to achieve significant loss reduction compared to previous generations. The product is qualified for industrial applications according to IEC standards.
Replacement Considerations
Consult official substitution lists for verified alternatives. Cross-referencing requires matching voltage ratings, current capabilities, and package dimensions to ensure functional compatibility in existing designs.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 70 A, limited by the operating junction temperature.
Does the module include short-circuit capability?
Yes, the datasheet specifies short-circuit data, allowing operation for up to 8 µs at 150°C and 7 µs at 175°C under defined conditions.
What is the typical forward voltage of the integrated diode?
The typical forward voltage (VF) of the emitter-controlled diode is 1.72 V at 25°C when conducting 35 A.
