Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-311
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：Full Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 75A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：105 A
- Power - Max：350 W
- Current - Collector Cutoff (Max)：5 mA
- Input Capacitance (Cies) @ Vce：5.3 nF @ 25 V
Download product information
Overview

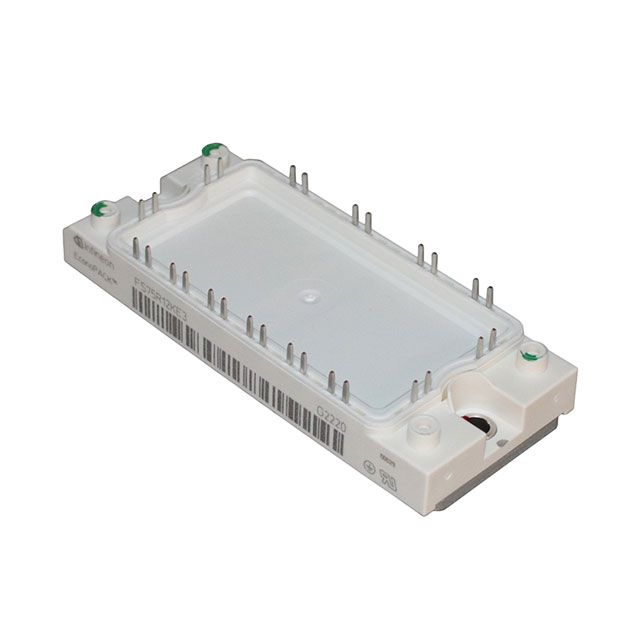

The FS75R12KE3BPSA1 is an IGBT module featuring a 1200 V collector-emitter voltage rating and a continuous collector current of 75 A at Tc=80°C. It integrates a fast recovery anti-parallel diode with a repetitive peak forward current of 150 A. The device exhibits a typical collector-emitter saturation voltage of 1.7 V at 75 A and 25°C, rising to 2.15 V at 125°C. Switching characteristics include a turn-on delay of 0.26 µs and a fall time of 0.03 µs at 600 V. Thermal management relies on a junction-to-case resistance of 0.35 K/W, supporting a maximum junction temperature of 150°C.
Feature Summary
- Integrates an IGBT switch with a high-speed anti-parallel diode for inverter applications
- Features robust short-circuit capability up to 300 A for 10 µs
- Includes an integrated NTC thermistor for precise thermal monitoring
Applications
- Medium power motor drives and inverters
- Induction heating systems
- Uninterruptible power supplies (UPS)
Procurement Notes
Verify the specific ordering suffix BPSA1 against the manufacturer's current datasheet revision to confirm pinout compatibility and packaging details. Ensure the component matches the original design specifications before integration into production assemblies.
Selection Notes
Select this module for applications requiring 1200 V blocking voltage and 75 A continuous current. Evaluate the thermal resistance of 0.35 K/W against the heatsink design to maintain junction temperatures below 150°C under expected load conditions.
Part Context
This component belongs to the FS75R12KE3 series of IGBT modules manufactured by Infineon Technologies. The product line is designed for medium-power switching applications, combining low conduction losses with fast switching speeds suitable for industrial power electronics.
Replacement Considerations
Consult official substitution guides for compatible IGBT modules with matching voltage and current ratings. Verify mechanical dimensions and thermal characteristics before replacing the existing component in the assembly.
