FS950R08A6P2BBPSA1

$289.16

Description：IGBT MODULE 750V 950A
Series：HybridPACK™

SKU:9a87b84b5221 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 750V 950A
Series：HybridPACK™
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：1.35V @ 15V, 450A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-HYBRIDD-2
Voltage - Collector Emitter Breakdown (Max)：750 V
Current - Collector (Ic) (Max)：950 A
Power - Max：870 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：80 nF @ 50 V

Download product information

FS950R08A6P2BBPSA1

Overview

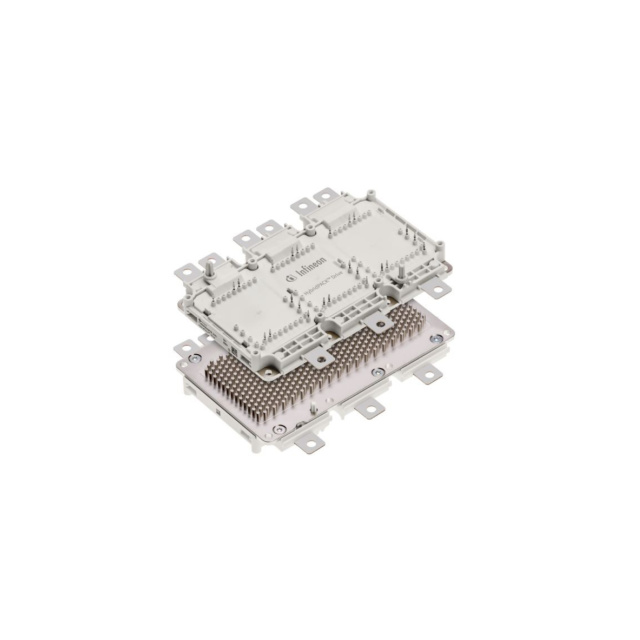

The FS950R08A6P2BBPSA1 is a HybridPACK Drive six-pack IGBT module with EDT2 technology. It features a 750 V collector-emitter voltage and an implemented collector current of 950 A. The continuous DC collector current is 450 A at a baseplate temperature of 95°C, with a maximum junction temperature of 175°C. The saturation voltage is 1.35 V at 950 A and 25°C. Total power dissipation reaches 870 W. The module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.

Feature Summary

EDT2 Micro-Pattern Trench-Field-Stop cell design optimized for electric drive train applications
Direct cooled PinFin baseplate structure utilizing optimized ceramic material for superior thermal characteristics
Press-fit contact technology for signal terminals to eliminate selective solder processes
Mechanical guiding elements supporting easy assembly processes for customers

Applications

Hybrid Electrical Vehicles (HEV)
Electric Vehicles (EV)
Motor Drives
Commercial Agriculture Vehicles

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm exact configuration details. Confirm RoHS compliance status and automotive qualification requirements prior to integration. Ensure cooling system parameters match datasheet specifications for optimal thermal performance.

Selection Notes

Select this module for high-power density traction inverter designs requiring benchmark current density. Consider the short circuit ruggedness and increased blocking voltage for reliable operation under harsh environmental conditions. Evaluate switching frequency optimization around 10 kHz for best efficiency.

Part Context

This component belongs to the HybridPACK Drive family, which provides scalable power solutions for hybrid and electric vehicle traction inverters. The series maintains a consistent footprint across different power ratings, allowing system developers to flexibly expand inverter performance without significant design changes.
