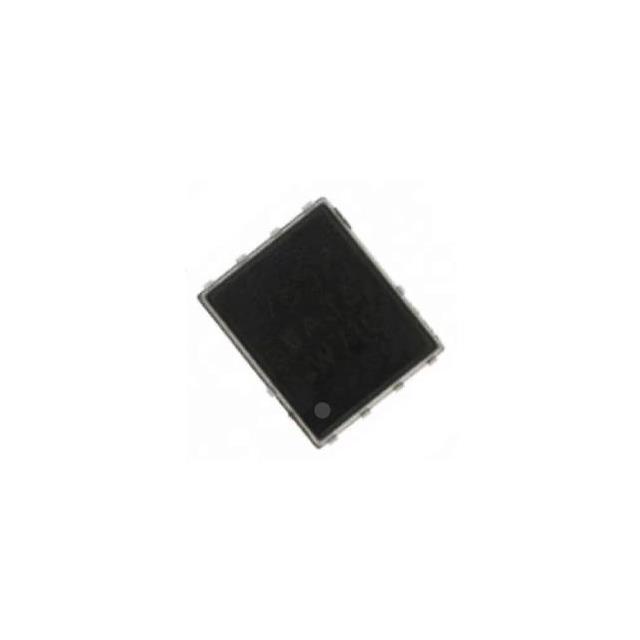

GSFP1526 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is MOSFET, N-CH, SINGLE, 25A, 150V,. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for GSFP1526
- Description：MOSFET, N-CH, SINGLE, 25A, 150V,
- Series：-
- Mfr：Good-Ark Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：150 V
- Current - Continuous Drain (Id) @ 25°C：25A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：10V
- Rds On (Max) @ Id, Vgs：51mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id：4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：23 nC @ 10 V
- Vgs (Max)：±20V
- Input Capacitance (Ciss) (Max) @ Vds：1620 pF @ 80 V
- FET Feature：-
- Power Dissipation (Max)：101W (Tc)
- Operating Temperature：-55°C ~ 150°C (TJ)
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Supplier Device Package：8-PPAK (5.1x5.71)
- Package / Case：8-PowerTDFN
Single FETs, MOSFETs datasheet and documents for GSFP1526
Single FETs, MOSFETs Overview
The GSFP1526 is a 150V N-Channel MOSFET manufactured by Good-Ark Semiconductor, designed for high-efficiency switched mode power supplies. It features an advanced MOSFET process technology that achieves high cell density and low on-resistance. The device offers a continuous drain current of 25A at 25°C case temperature and a maximum static drain-source on-resistance of 51mΩ at VGS=10V. Packaged in a PPAK5x6 surface-mount format, it supports fast switching and reverse body recovery characteristics.
Single FETs, MOSFETs Feature Summary
- Utilizes advanced MOSFET process technology to achieve high cell density and low on-resistance
- Features fast switching capabilities and reverse body recovery
- Designed for high efficiency in switched mode power supply applications
Single FETs, MOSFETs Applications
- High efficiency switched mode power supplies
- General purpose power control applications requiring low on-resistance
Single FETs, MOSFETs Procurement Notes
Verify the specific ordering suffix and reel quantity against the manufacturer's official documentation before procurement. Confirm RoHS compliance status and packaging details directly with Good-Ark Semiconductor or authorized distributors to ensure alignment with project requirements. Cross-reference the datasheet revision date to ensure access to the most current electrical specifications and thermal characteristics.
Single FETs, MOSFETs Selection Notes
Select this component when designing circuits requiring a 150V breakdown voltage with a continuous current rating of 25A. Consider the PPAK5x6 package dimensions for PCB layout constraints. Evaluate the gate charge parameters and switching times against the target operating frequency to ensure optimal efficiency and thermal performance within the specified junction temperature range.
Single FETs, MOSFETs Part Context
This part belongs to the discrete semiconductor category, specifically within the N-Channel MOSFET segment produced by Good-Ark Semiconductor. It is engineered to provide reliable performance in power management systems where low conduction losses and rapid switching transitions are critical design factors.
Single FETs, MOSFETs Replacement Considerations
Consult the manufacturer's official substitution guide for verified alternatives. Ensure any replacement matches the 150V BVDSS, 25A ID, and PPAK5x6 package footprint while maintaining comparable RDS(ON) and thermal resistance specifications.
