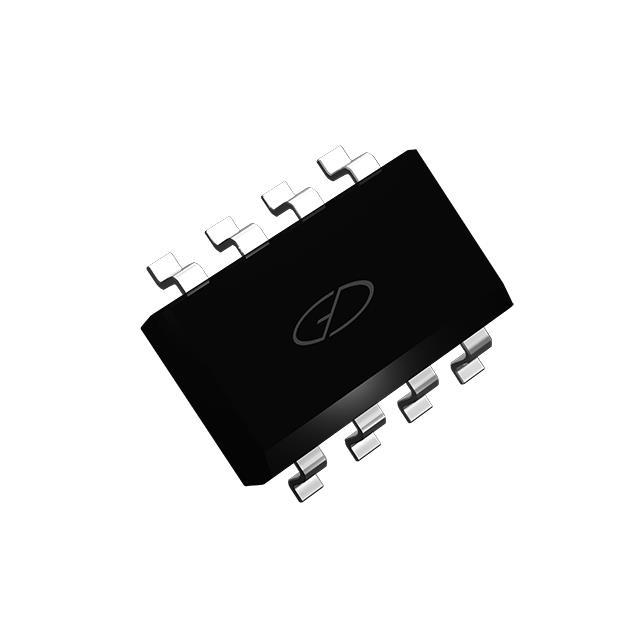

GSFQ4616

$0.32

Description：MOSFET N/P-CH 30V 8A 8SOP
Series：-

SKU:b6497167325c Category: FET, MOSFET Arrays Brand: Good-Ark Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

GSFQ4616 is listed in the FET, MOSFET Arrays range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is MOSFET N/P-CH 30V 8A 8SOP. Review the specifications below when checking this part for your BOM.

FET, MOSFET Arrays specifications for GSFQ4616

Description：MOSFET N/P-CH 30V 8A 8SOP
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：N and P-Channel Complementary
FET Feature：-
Drain to Source Voltage (Vdss)：30V
Current - Continuous Drain (Id) @ 25°C：8A (Tc), 7A (Tc)
Rds On (Max) @ Id, Vgs：20mOhm @ 8A, 10V, 22mOhm @ 7A, 10V
Vgs(th) (Max) @ Id：2V @ 250µA, 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：15nC @ 10V, 18.6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds：740pF @ 15V, 1040pF @ 15V
Power - Max：2W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-SOIC (0.154", 3.90mm Width)
Supplier Device Package：8-SOP
Grade：-
Qualification：-

FET, MOSFET Arrays datasheet and documents for GSFQ4616

GSFQ4616

FET, MOSFET Arrays Overview

The GSFQ4616 is a 30V N-Channel and P-Channel complementary MOSFET in an SOP-8 package. The N-Channel device features a maximum on-resistance of 20mΩ at VGS=10V and a continuous drain current of 8A. The P-Channel counterpart has a maximum on-resistance of 22mΩ at VGS=-10V and a continuous drain current of -7A. Both channels support a gate-source voltage of ±20V and operate within a junction temperature range of -55°C to +150°C.

FET, MOSFET Arrays Feature Summary

Complementary N-Channel and P-Channel configuration in a single SOP-8 package
Advanced process technology for high cell density and low on-resistance
Fast switching and reverse body recovery characteristics
Low gate charge for improved efficiency

FET, MOSFET Arrays Applications

High efficiency switch mode power supplies
DC-DC converters
Power distribution circuits

FET, MOSFET Arrays Procurement Notes

Verify the specific ordering suffix and reel quantity against the manufacturer's official documentation before procurement. Confirm RoHS compliance status and HSF requirements with the supplier. Ensure the SOP-8 package dimensions match the design constraints. Check for any recent product discontinuation notices or lifecycle changes directly from Good-Ark Semiconductor.

FET, MOSFET Arrays Selection Notes

Select this component for applications requiring a compact complementary MOSFET pair with low on-resistance. The SOP-8 package suits space-constrained designs. Evaluate thermal performance based on the specified junction-to-ambient resistance. Consider the gate charge values for driving circuit requirements. Verify that the 30V breakdown voltage meets the system's voltage headroom needs.

FET, MOSFET Arrays Part Context

The GSFQ4616 belongs to Good-Ark Semiconductor's complementary MOSFET lineup, designed for high-efficiency power management. It integrates both N-Channel and P-Channel devices into one package to save board space. The device utilizes advanced MOSFET process technology to achieve low on-resistance and fast switching speeds suitable for modern power supply applications.
