HHBC10-0R8A0068V

$4.05

Description：CMC 68UH 3A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk

SKU:3123fcb0d100 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HHBC10-0R8A0068V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 68UH 3A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for HHBC10-0R8A0068V

Description：CMC 68UH 3A 2LN TH
Series：HHBC
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：42.3mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.846" Dia (21.50mm)
Height (Max)：-
Package / Case：Vertical, No Base, 2 PC Pin
Inductance @ Frequency：68 µH @ 100 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for HHBC10-0R8A0068V

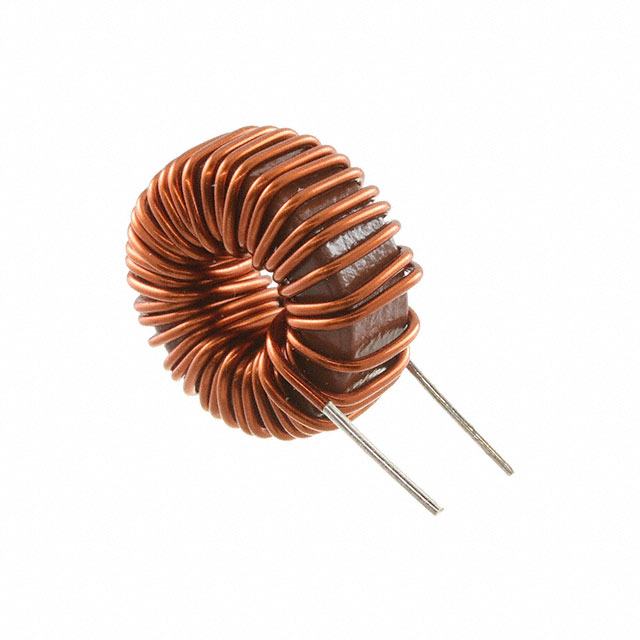

HHBC10-0R8A0068V

Common Mode Chokes Overview

The KEMET HHBC10-0R8A0068V is a through-hole differential mode choke from the HHBC series. It features an inductance of 68 µH with a 20% tolerance, measured at 100 kHz. The component supports a maximum DC current of 3 A and has a maximum DC resistance (DCR) of 42.3 mΩ. It operates within a temperature range of -40 °C to +125 °C. The device utilizes a ferrite core and is designed for vertical PCB mounting with two PC pins.

Common Mode Chokes Feature Summary

Provides differential mode filtering capabilities for power circuits
Utilizes a ferrite core structure for magnetic performance
Designed for vertical through-hole PCB mounting

Common Mode Chokes Applications

General commercial electronic equipment
Power supply input filtering
Differential mode noise suppression

Common Mode Chokes Procurement Notes

Verify the specific part number HHBC10-0R8A0068V against official KEMET documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with target PCB footprint and thermal requirements. Check for RoHS compliance status as indicated in current datasheets. Confirm availability and lead times directly with authorized distributors or the manufacturer.

Common Mode Chokes Selection Notes

Select this component when a 68 µH inductance with 3 A current rating is required for differential mode applications. Consider the 42.3 mΩ DCR for efficiency calculations. Verify that the through-hole package fits the assembly constraints. Compare against other HHBC series variants if different inductance or current values are needed.

Common Mode Chokes Part Context

This component belongs to the KEMET HHBC series of fixed power inductors. These components are characterized by their toroidal ferrite core construction and radial leaded termination style. The series is generally intended for commercial applications requiring reliable inductive filtering in power lines.
