HIF3H-16DA-2.54DSA(61)

Headers, Receptacles, Female Sockets Overview

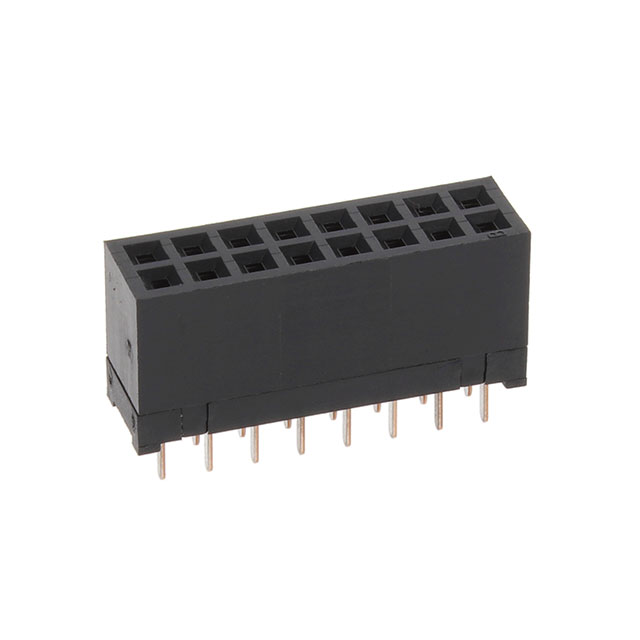

The HIF3H-16DA-2.54DSA(61) is a 16-position receptacle connector from the Hirose Electric HIF3H series, designed for board-to-cable or wire applications. It features a 0.100" (2.54mm) mating pitch with two rows and utilizes through-hole termination for secure PCB mounting. The contacts are female sockets made of phosphor bronze with gold plating to ensure reliable signal transmission. Rated for 3A current and 300V AC, it operates within a temperature range of -55°C to 85°C. The housing is constructed from black PBT material rated UL94 V-0 for flame resistance.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull locking mechanism ensures secure connection stability during operation.
• Gold-plated phosphor bronze contacts provide durable conductivity and corrosion resistance.
• Black PBT insulation offers high thermal stability and UL94 V-0 flame retardancy.

Headers, Receptacles, Female Sockets Applications

• Computer peripheral interconnections
• Termination equipment assembly
• Office automation machinery circuits
• General electronic equipment wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix (61) against the manufacturer's latest datasheet to confirm packaging details and lead times. Ensure compatibility with mating headers in the same HIF3H series. Check RoHS compliance status and moisture sensitivity level requirements for your assembly process before finalizing orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, two-row female receptacle is required for direct cable attachment. The 2.54mm pitch suits standard breadboard-compatible designs. Consider the push-pull feature if vibration resistance is critical. Verify that the 3A rating meets the circuit's electrical load requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the HIF3H series, which focuses on compact board-to-cable solutions. It complements male header counterparts like the HIF3H-16PA variants. The series is engineered for dense routing in space-constrained electronics, offering a balance between mechanical robustness and electrical performance for consumer and industrial devices.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other Hirose HIF3H series receptacles with matching pin counts and pitch, such as HIF3H-16DA-2.54DSA variations. Cross-series replacements require verifying mechanical dimensions and contact alignment to ensure proper fit and function.

Headers, Receptacles, Female Sockets FAQ

What is the mating force characteristic of this connector?

The connector utilizes a push-pull locking system, which typically provides consistent insertion and extraction forces compared to standard snap-fit connectors.

Is the insulation material halogen-free?

The datasheet specifies PBT insulation but does not explicitly state halogen-free certification; verify with the manufacturer for specific environmental compliance needs.
