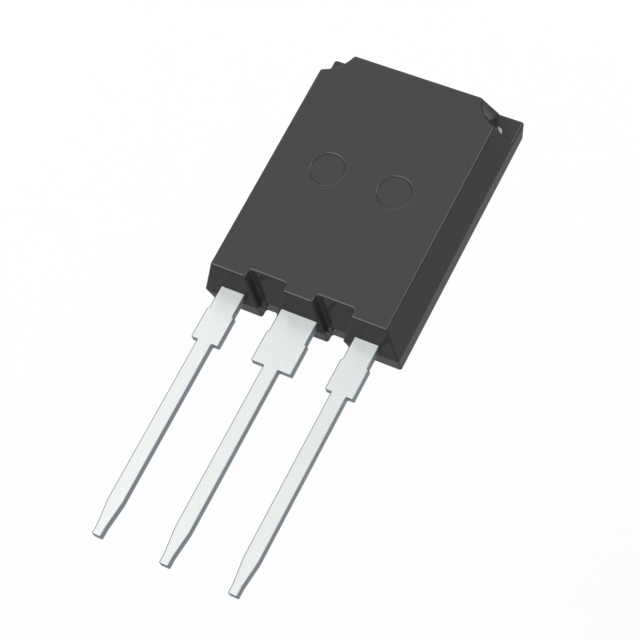

IGQ100N120S7XKSA1

$11.41

Description：IGBT TRENCH 1200V 188A TO247-55
Series：TRENCHSTOP™

SKU:fdfebd2a2c3f Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH 1200V 188A TO247-55
Series：TRENCHSTOP™
Mfr：Infineon Technologies
Package：Tube
IGBT Type：Trench
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：188 A
Current - Collector Pulsed (Icm)：300 A
Vce(on) (Max) @ Vge, Ic：2V @ 15V, 100A
Power - Max：824 W
Switching Energy：6.87mJ (on), 4.71mJ (off)
Input Type：Standard
Gate Charge：610 nC
Td (on/off) @ 25°C：38ns/200ns
Test Condition：600V, 100A, 1.6Ohm, 15V
Reverse Recovery Time (trr)：-
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-247-3
Supplier Device Package：PG-TO247-3-55
Grade：-
Qualification：-

Download product information

IGQ100N120S7XKSA1

Overview

The IGQ100N120S7XKSA1 is a single N-channel IGBT from the TRENCHSTOP™ IGBT 7 family, utilizing S7 technology. It features a collector-emitter voltage of 1200 V and a continuous collector current of 188 A at 25°C. The device operates within a junction temperature range of -40°C to +175°C. Key electrical parameters include a saturation voltage of 2.0 V at 175°C, a gate charge of 610 nC, and short-circuit ruggedness up to 8 µs.

Feature Summary

Short circuit ruggedness capability of 8 µs
Wide range of dv/dt controllability
Low saturation voltage characteristics

Applications

Industrial power supplies
Solar applications

Procurement Notes

Verify component authenticity through authorized Infineon distributors or official channels. Confirm the specific ordering suffix matches project requirements. Check for the NRND status if applicable to long-term supply planning. Ensure compliance with JEDEC qualification standards for industrial environments before integration.

Selection Notes

Select this component for high-voltage industrial switching applications requiring robust short-circuit tolerance. Evaluate thermal management needs based on the specified junction-to-case thermal resistance. Consider the gate charge and switching energy losses for driver design optimization in medium-frequency operations.

Part Context

This part belongs to the TRENCHSTOP™ IGBT 7 series, designed for improved efficiency and ruggedness compared to previous generations. It utilizes advanced trench gate technology to reduce conduction and switching losses while maintaining high reliability in demanding power electronics environments.
