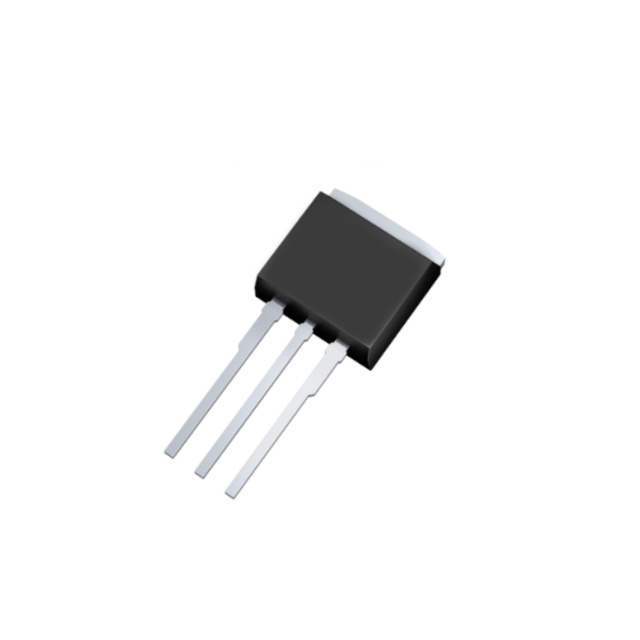

IGU04N60TAKMA1

$1.29

Description：IGBT TRENCH 600V 8A TO251-3
Series：TrenchStop™

SKU:5b1498a32f38 Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH 600V 8A TO251-3
Series：TrenchStop™
Mfr：Infineon Technologies
Package：Tube
IGBT Type：Trench
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：8:00 AM
Current - Collector Pulsed (Icm)：12:00 AM
Vce(on) (Max) @ Vge, Ic：2.05V @ 15V, 4A
Power - Max：42 W
Switching Energy：61µJ (on), 84µJ (off)
Input Type：Standard
Gate Charge：27 nC
Td (on/off) @ 25°C：14ns/164ns
Test Condition：400V, 4A, 47Ohm, 15V
Reverse Recovery Time (trr)：-
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-251-3 Short Leads, IPAK, TO-251AA
Supplier Device Package：PG-TO251-3
Grade：-
Qualification：-

Download product information

IGU04N60TAKMA1

Overview

The IGU04N60T is a single N-channel Insulated Gate Bipolar Transistor from the TRENCHSTOP™ series, manufactured by Infineon Technologies. It features a collector-emitter voltage of 600 V and a continuous DC collector current of 9.5 A at 25°C case temperature. The typical collector-emitter saturation voltage is 1.5 V at 25°C. The device operates within a junction temperature range of -40°C to +175°C and has a maximum power dissipation of 42 W at 25°C. It utilizes the PG-TO251-3 surface-mount package.

Feature Summary

Utilizes TRENCHSTOP™ technology for high ruggedness and tight parameter distribution in 600V applications.
Features very low collector-emitter saturation voltage and positive temperature coefficient for stable parallel operation.
Designed for low electromagnetic interference (EMI) and low gate charge requirements.
Capable of withstanding short circuit conditions for up to 5 microseconds.

Applications

Frequency inverters
Motor drives

Procurement Notes

Verify component authenticity through authorized Infineon distributors or direct channels. Confirm that the specific ordering suffix matches the required packaging format. Ensure compliance with JEDEC standards for target applications. Check for RoHS compliance status as indicated in official documentation before procurement.

Selection Notes

Select this component for designs requiring robust performance in frequency inverter and drive applications. Consider the 600V rating and 9.5A current capability relative to thermal management constraints. Evaluate the PG-TO251-3 package suitability for the intended PCB layout and heat dissipation strategy.

Part Context

This discrete IGBT belongs to the TRENCHSTOP™ family, which emphasizes low loss and high switching speed. It is distinct from intelligent power modules and MOSFETs, serving specifically as a high-power switching element. The product is not qualified according to AEC-Q100 or AEC-Q101 automotive standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided datasheet. Consult Infineon technical support for cross-reference recommendations based on specific electrical and thermal requirements.
