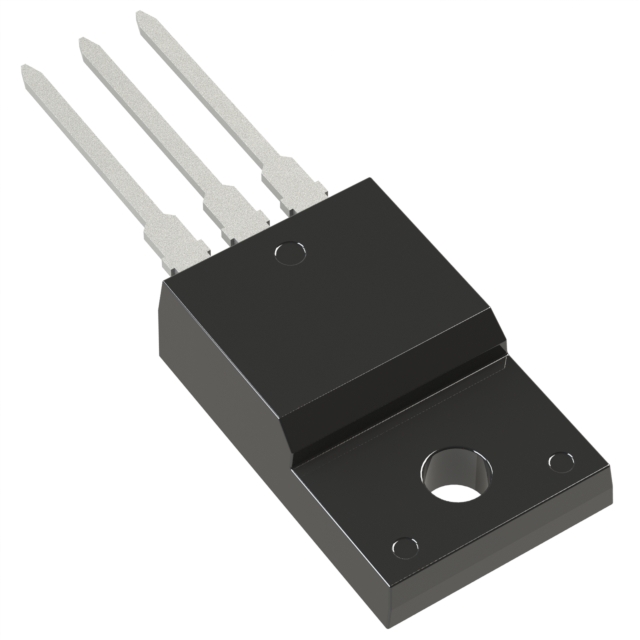

IKA15N65F5XKSA1

$2.57

Description：IGBT 650V 14A TO220-FP
Series：TrenchStop®

SKU:33ef568e9b1d Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT 650V 14A TO220-FP
Series：TrenchStop®
Mfr：Infineon Technologies
Package：Tube
IGBT Type：-
Voltage - Collector Emitter Breakdown (Max)：650 V
Current - Collector (Ic) (Max)：14 A
Current - Collector Pulsed (Icm)：45 A
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 15A
Power - Max：33.3 W
Switching Energy：130µJ (on), 40µJ (off)
Input Type：Standard
Gate Charge：38 nC
Td (on/off) @ 25°C：17ns/150ns
Test Condition：400V, 7.5A, 39Ohm, 15V
Reverse Recovery Time (trr)：50 ns
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-220-3 Full Pack
Supplier Device Package：PG-TO220-FP
Grade：-
Qualification：-

Download product information

IKA15N65F5XKSA1

Overview

The IKA15N65F5XKSA1 is a high-speed IGBT in TRENCHSTOP™ 5 technology, copacked with a RAPID 1 fast and soft antiparallel diode. It features a collector-emitter voltage of 650 V, a continuous collector current of 14 A at 25°C, and a saturation voltage of 1.6 V. The device supports a maximum junction temperature of 175°C and operates within a range of -40°C to +175°C. It utilizes a PG-TO220-3 FP package for through-hole mounting.

Feature Summary

High-speed F5 technology optimized for best-in-class efficiency in hard switching and resonant topologies
Integrated RAPID 1 fast and soft antiparallel diode for improved switching performance
Qualified according to JEDEC standards for target industrial applications

Applications

Solar converters
Uninterruptible power supplies
Welding converters
Mid to high range switching frequency converters

Procurement Notes

Verify the specific ordering suffix XKSA1 against official Infineon documentation to confirm packaging details and compliance status. Ensure that the component matches the required PG-TO220-3 FP package type and lead plating specifications before finalizing procurement orders.

Selection Notes

Select this component for designs requiring high-speed switching capabilities and low gate charge. Consider the thermal resistance characteristics and the maximum junction temperature rating when designing heat dissipation solutions for the intended application environment.

Part Context

This part belongs to the TRENCHSTOP™ 5 FAST IGBT series from Infineon Technologies. It represents the fifth generation of high-speed switching technology, designed to offer superior performance compared to previous generations in terms of switching losses and overall system efficiency.

Replacement Considerations

Consult official Infineon documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other IGBT models without verifying electrical parameters and pin configurations.
