Product Detailed Parameters

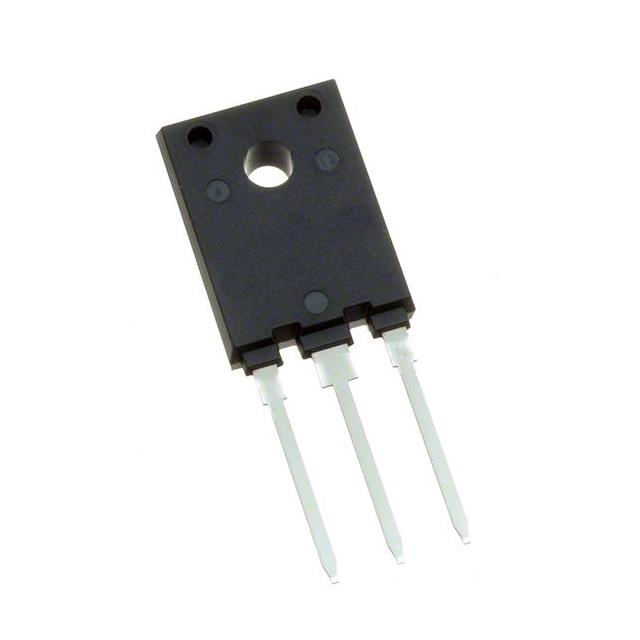

- Description：IGBT TRENCH FS 600V 40A TO-247-3
- Series：TrenchStop™
- Mfr：Infineon Technologies
- Package：Tube
- IGBT Type：Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：40 A
- Current - Collector Pulsed (Icm)：120 A
- Vce(on) (Max) @ Vge, Ic：2.7V @ 15V, 40A
- Power - Max：130 W
- Switching Energy：1.28mJ (on), 560µJ (off)
- Input Type：Standard
- Gate Charge：160 nC
- Td (on/off) @ 25°C：21ns/174ns
- Test Condition：400V, 40A, 8Ohm, 15V
- Reverse Recovery Time (trr)：64 ns
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-247-3
- Supplier Device Package：PG-TO247-3-AI
- Grade：-
- Qualification：-
Download product information
Overview
The IKFW50N60DH3EXKSA1 is a single N-channel IGBT from Infineon's Trenchstop High Speed 3 series, housed in a TO-247-3 package. It features a maximum collector-emitter voltage of 600 V and a continuous collector current of 60 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.85 V and supports a power dissipation of 145 W. Operating temperatures range from -40°C to +175°C.
Feature Summary
- Integrates Trenchstop High Speed 3 technology for optimized switching performance.
- Includes an integrated anti-parallel diode for simplified circuit design.
- Provides high short-circuit capability with robust thermal stability.
Applications
- Induction heating appliances
- Home appliance motor drives
- Uninterruptible power supplies
Procurement Notes
Verify the exact suffix against official Infineon documentation to confirm specific tape-and-reel or tube packaging variants. Confirm RoHS compliance status through the manufacturer's latest material declaration. Ensure the ordering part number matches the required electrical characteristics and package type before finalizing procurement orders.
Selection Notes
Select this component for applications requiring 600V blocking capability and moderate current handling up to 60A. The TO-247-3 package facilitates efficient heat dissipation for industrial and consumer electronics. Evaluate the trade-off between the 1.85V saturation voltage and switching losses based on the specific system frequency requirements.
Part Context
This device belongs to the Trenchstop High Speed 3 family, designed to balance low conduction losses with fast switching speeds. It serves as a discrete solution for medium-power conversion tasks where reliability and compact form factors are critical for system integration.
Replacement Considerations
Consult official cross-reference lists for verified substitutes such as the IKFW50N60DH3XKSA1. Verify pinout compatibility and thermal resistance parameters before implementing any alternative components in existing designs.
