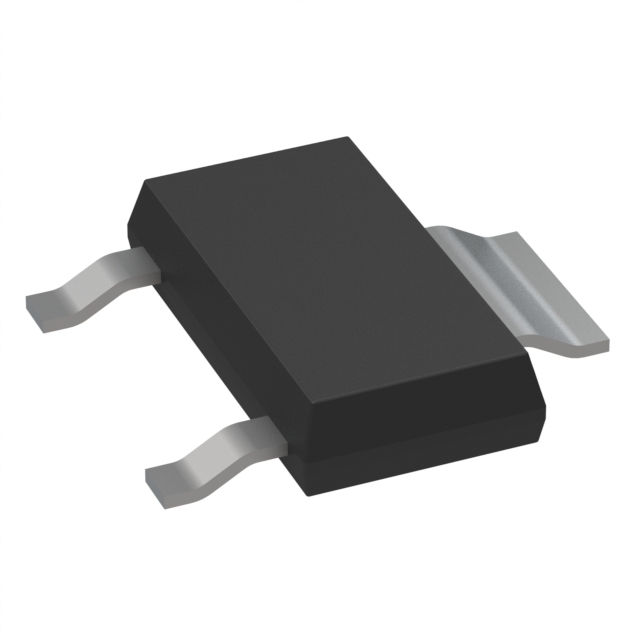

IKN06N60RC2ATMA1

$1.10

Description：IGBT 600V 8A SOT223-3
Series：-

SKU:25b09fb7466d Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT 600V 8A SOT223-3
Series：-
Mfr：Infineon Technologies
Package：Tape & Reel (TR),Cut Tape (CT)
IGBT Type：-
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：8:00 AM
Current - Collector Pulsed (Icm)：18 A
Vce(on) (Max) @ Vge, Ic：2.3V @ 15V, 6A
Power - Max：7.2 W
Switching Energy：151µJ (on), 104µJ (off)
Input Type：Standard
Gate Charge：31 nC
Td (on/off) @ 25°C：8.8ns/174ns
Test Condition：400V, 6A, 49Ohm, 15V
Reverse Recovery Time (trr)：42 ns
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-261-4, TO-261AA
Supplier Device Package：PG-SOT223-3
Grade：-
Qualification：-

Download product information

IKN06N60RC2ATMA1

Overview

The IKN06N60RC2ATMA1 is a 600 V Reverse Conducting Drive 2 (RC-D2) Insulated Gate Bipolar Transistor manufactured by Infineon Technologies. It integrates an IGBT and a diode in a single PG-SOT223-3 package. Key electrical parameters include a collector-emitter voltage of 600 V, a continuous collector current of 8 A at 25°C, and a saturation voltage of 2 V. The device supports a maximum junction temperature of 150°C, operates within a frequency range of 1 to 20 kHz, and features a short-circuit withstand time of 3 µs.

Feature Summary

Monolithically integrated reverse conducting diode for cost-effective design
Humidity robust design with Pb-free lead plating
Short circuit capability of 3 µs

Applications

Ceiling fan
Countertop appliances - mixing
Kitchen hood
Refrigerators
Residential aircon indoor unit
Washing machines
General purpose drives (GPD)

Procurement Notes

Verify the component against the official datasheet revision 1.10 to ensure compatibility with specific application requirements. Confirm that the operating conditions do not exceed 80% of the maximum ratings stated in the documentation for optimum lifetime and reliability. Ensure compliance with JEDEC47/20/22 standards for industrial applications.

Selection Notes

Select this component for applications requiring a compact solution with integrated freewheeling functionality. Consider the thermal resistance values when designing the PCB footprint, as heat dissipation significantly impacts performance. Verify gate resistor values to optimize switching times and energy losses according to the provided characteristic diagrams.

Part Context

This part belongs to the RC-D2 family, offering a cost-effective alternative to discrete solutions. It is designed for residential and general-purpose drive applications where space and component count are critical factors. The integration simplifies the circuit layout while maintaining reliable performance under standard operating conditions.
