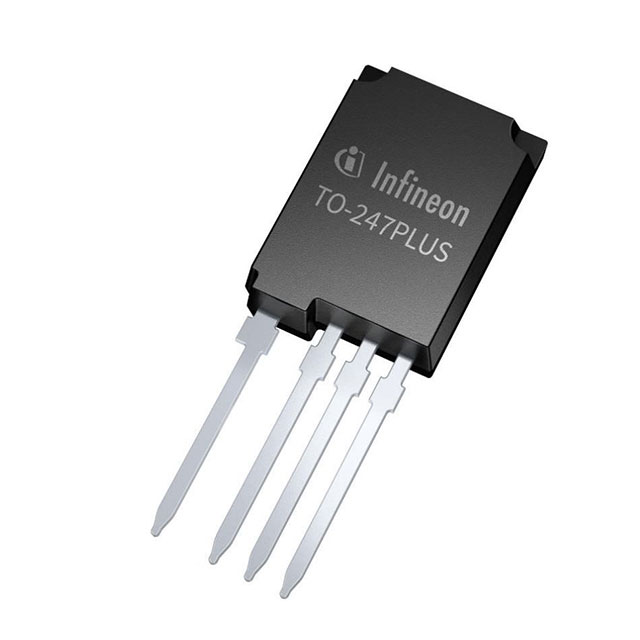

IKY140N120CH7XKSA1

$11.65

Description：IGBT TRENCH FS 1200V 232A TO247
Series：TRENCHSTOP™

SKU:c0c196ea7ec3 Category: Single IGBTs Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT TRENCH FS 1200V 232A TO247
Series：TRENCHSTOP™
Mfr：Infineon Technologies
Package：Tube
IGBT Type：Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：232 A
Current - Collector Pulsed (Icm)：560 A
Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 140A
Power - Max：962 W
Switching Energy：2.64mJ (on), 3.9mJ (off)
Input Type：Standard
Gate Charge：1032 nC
Td (on/off) @ 25°C：50ns/407ns
Test Condition：-
Reverse Recovery Time (trr)：101 ns
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-247-4
Supplier Device Package：PG-TO247-4-U10
Grade：-
Qualification：-

Download product information

IKY140N120CH7XKSA1

Overview

The IKY140N120CH7XKSA1 is a high-speed 1200 V TRENCHSTOP™ IGBT 7 Technology device co-packed with a full-rated current, soft-commutating, ultra-fast recovery emitter-controlled diode. It features a collector-emitter voltage of 1200 V and a DC collector current of 140 A at 25°C. The saturation voltage is 1.7 V at 25°C and 2 V at 175°C. Maximum junction temperature is 175°C. Gate charge is 1032 nC. Turn-on energy is 2.64 mJ and turn-off energy is 3.9 mJ at 25°C. Diode forward voltage is 2.5 V at 25°C. Reverse recovery charge is 4.14 µC at 25°C.

Feature Summary

Best-in-class high speed IGBT co-packed with full rated current, low Qrr and soft-commutating high speed diode
Optimized for high efficiency in high speed hard switching topologies (2-L inverter, 3-L NPC T-type)
Easy paralleling capability due to positive temperature coefficient in VCEsat

Applications

Industrial UPS
EV-Charging
String inverter
Welding

Procurement Notes

Verify the exact ordering suffix against official Infineon documentation to ensure correct package and marking specifications. Confirm RoHS compliance status and Pb-free lead plating requirements prior to procurement. Ensure industrial application qualification aligns with JEDEC standards as specified in the datasheet.

Selection Notes

Select this component for applications requiring high efficiency in high-speed hard switching topologies. Consider the positive temperature coefficient in VCEsat for easy paralleling capabilities. Evaluate thermal resistance values for heat sink design to maintain junction temperature within the 175°C maximum limit.

Part Context

This part belongs to the TRENCHSTOP™ IGBT 7 family from Infineon Technologies. It utilizes advanced trench gate technology to achieve high switching speeds and low conduction losses. The PG-TO247-4-PLUS package provides robust mechanical stability and enhanced thermal performance for industrial power electronics applications.
